A layout that places child elements aligned to the border or arbitrarily positioned. Więcej...

#include <qcustomplot.hh>

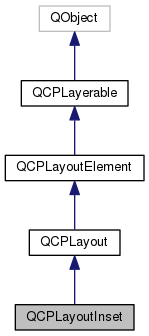

Diagram dziedziczenia dla QCPLayoutInset

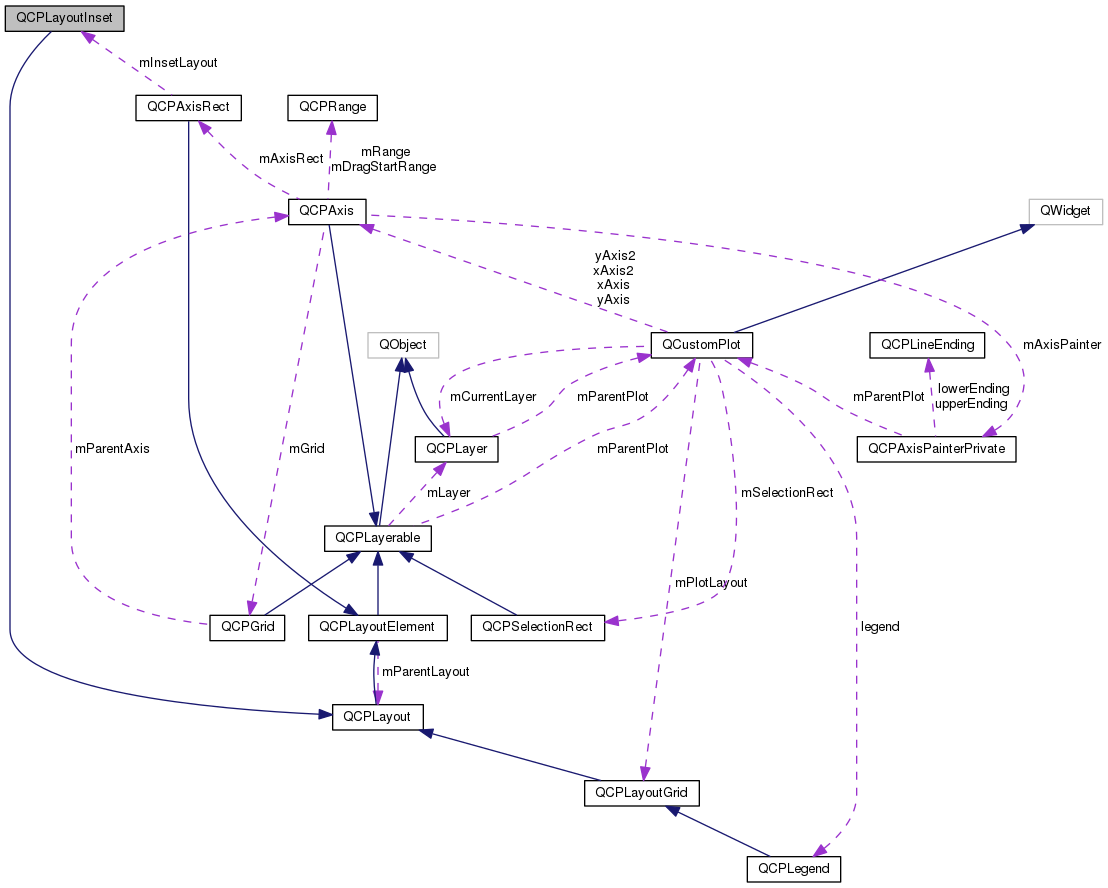

Diagram współpracy dla QCPLayoutInset:

[legenda]

Typy publiczne
enum	InsetPlacement { ipFree, ipBorderAligned }

Typy publiczne dziedziczone z QCPLayoutElement
enum	UpdatePhase { upPreparation, upMargins, upLayout }

enum	SizeConstraintRect { scrInnerRect, scrOuterRect }

Metody publiczne
	QCPLayoutInset ()

virtual	~QCPLayoutInset ()

InsetPlacement	insetPlacement (int index) const

Qt::Alignment	insetAlignment (int index) const

QRectF	insetRect (int index) const

void	setInsetPlacement (int index, InsetPlacement placement)

void	setInsetAlignment (int index, Qt::Alignment alignment)

void	setInsetRect (int index, const QRectF &rect)

virtual void	updateLayout () Q_DECL_OVERRIDE

virtual int	elementCount () const Q_DECL_OVERRIDE

virtual QCPLayoutElement *	elementAt (int index) const Q_DECL_OVERRIDE

virtual QCPLayoutElement *	takeAt (int index) Q_DECL_OVERRIDE

virtual bool	take (QCPLayoutElement *element) Q_DECL_OVERRIDE

virtual void	simplify () Q_DECL_OVERRIDE

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

void	addElement (QCPLayoutElement *element, Qt::Alignment alignment)

void	addElement (QCPLayoutElement *element, const QRectF &rect)

Metody publiczne dziedziczone z QCPLayout
	QCPLayout ()

virtual void	update (UpdatePhase phase) Q_DECL_OVERRIDE

virtual QList< QCPLayoutElement * >	elements (bool recursive) const Q_DECL_OVERRIDE

bool	removeAt (int index)

bool	remove (QCPLayoutElement *element)

void	clear ()

Metody publiczne dziedziczone z QCPLayoutElement
	QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual	~QCPLayoutElement ()

QCPLayout *	layout () const

QRect	rect () const

QRect	outerRect () const

QMargins	margins () const

QMargins	minimumMargins () const

QCP::MarginSides	autoMargins () const

QSize	minimumSize () const

QSize	maximumSize () const

SizeConstraintRect	sizeConstraintRect () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

void	setOuterRect (const QRect &rect)

void	setMargins (const QMargins &margins)

void	setMinimumMargins (const QMargins &margins)

void	setAutoMargins (QCP::MarginSides sides)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setSizeConstraintRect (SizeConstraintRect constraintRect)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual QSize	minimumOuterSizeHint () const

virtual QSize	maximumOuterSizeHint () const

Metody publiczne dziedziczone z QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Atrybuty chronione
QList< QCPLayoutElement * >	mElements

QList< InsetPlacement >	mInsetPlacement

QList< Qt::Alignment >	mInsetAlignment

QList< QRectF >	mInsetRect

Atrybuty chronione dziedziczone z QCPLayoutElement
QCPLayout *	mParentLayout

QSize	mMinimumSize

QSize	mMaximumSize

SizeConstraintRect	mSizeConstraintRect

QRect	mRect

QRect	mOuterRect

QMargins	mMargins

QMargins	mMinimumMargins

QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

Atrybuty chronione dziedziczone z QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Dodatkowe Dziedziczone Składowe
Sygnały dziedziczone z QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Metody chronione dziedziczone z QCPLayout
void	sizeConstraintsChanged () const

void	adoptElement (QCPLayoutElement *el)

void	releaseElement (QCPLayoutElement *el)

QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const

Metody chronione dziedziczone z QCPLayoutElement
virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	layoutChanged ()

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	parentPlotInitialized (QCustomPlot *parentPlot) Q_DECL_OVERRIDE

Metody chronione dziedziczone z QCPLayerable
virtual QCP::Interaction	selectionCategory () const

virtual QRect	clipRect () const

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged)

virtual void	deselectEvent (bool *selectionStateChanged)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Statyczne metody chronione dziedziczone z QCPLayout
static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)

static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

Opis szczegółowy

Elements are placed either aligned to the border or at arbitrary position in the area of the layout. Which placement applies is controlled with the InsetPlacement (setInsetPlacement).

Elements are added via addElement(QCPLayoutElement *element, Qt::Alignment alignment) or addElement(QCPLayoutElement *element, const QRectF &rect). If the first method is used, the inset placement will default to ipBorderAligned and the element will be aligned according to the alignment parameter. The second method defaults to ipFree and allows placing elements at arbitrary position and size, defined by rect.

The alignment or rect can be set via setInsetAlignment or setInsetRect, respectively.

This is the layout that every QCPAxisRect has as QCPAxisRect::insetLayout.

Dokumentacja składowych wyliczanych

enum QCPLayoutInset::InsetPlacement

Defines how the placement and sizing is handled for a certain element in a QCPLayoutInset.

Wartości wyliczeń
ipFree	The element may be positioned/sized arbitrarily, see setInsetRect.
ipBorderAligned	The element is aligned to one of the layout sides, see setInsetAlignment.

Dokumentacja konstruktora i destruktora

QCPLayoutInset::QCPLayoutInset ( )

explicit

Creates an instance of QCPLayoutInset and sets default values.

QCPLayoutInset::~QCPLayoutInset ( )

virtual

Dokumentacja funkcji składowych

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		Qt::Alignment	alignment
	)

Adds the specified element to the layout as an inset aligned at the border (setInsetAlignment is initialized with ipBorderAligned). The alignment is set to alignment.

alignment is an or combination of the following alignment flags: Qt::AlignLeft, Qt::AlignHCenter, Qt::AlighRight, Qt::AlignTop, Qt::AlignVCenter, Qt::AlignBottom. Any other alignment flags will be ignored.

Zobacz również: addElement(QCPLayoutElement *element, const QRectF &rect)

void QCPLayoutInset::addElement	(	QCPLayoutElement *	element,
		const QRectF &	rect
	)

Adds the specified element to the layout as an inset with free positioning/sizing (setInsetAlignment is initialized with ipFree). The position and size is set to rect.

rect is given in fractions of the whole inset layout rect. So an inset with rect (0, 0, 1, 1) will span the entire layout. An inset with rect (0.6, 0.1, 0.35, 0.35) will be in the top right corner of the layout, with 35% width and height of the parent layout.

Zobacz również: addElement(QCPLayoutElement *element, Qt::Alignment alignment)

QCPLayoutElement * QCPLayoutInset::elementAt ( int index ) const

virtual

Returns the element in the cell with the given index. If index is invalid, returns 0.

Note that even if index is valid, the respective cell may be empty in some layouts (e.g. QCPLayoutGrid), so this function may return 0 in those cases. You may use this function to check whether a cell is empty or not.

Zobacz również: elements, elementCount, takeAt

Implementuje QCPLayout.

int QCPLayoutInset::elementCount ( ) const

virtual

Returns the number of elements/cells in the layout.

Zobacz również: elements, elementAt

Implementuje QCPLayout.

Qt::Alignment QCPLayoutInset::insetAlignment ( int index ) const

Returns the alignment of the element with the specified index. The alignment only has a meaning, if the inset placement (setInsetPlacement) is ipBorderAligned.

QCPLayoutInset::InsetPlacement QCPLayoutInset::insetPlacement ( int index ) const

Returns the placement type of the element with the specified index.

QRectF QCPLayoutInset::insetRect ( int index ) const

Returns the rect of the element with the specified index. The rect only has a meaning, if the inset placement (setInsetPlacement) is ipFree.

double QCPLayoutInset::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

The inset layout is sensitive to events only at areas where its (visible) child elements are sensitive. If the selectTest method of any of the child elements returns a positive number for pos, this method returns a value corresponding to 0.99 times the parent plot's selection tolerance. The inset layout is not selectable itself by default. So if onlySelectable is true, -1.0 is returned.

See QCPLayerable::selectTest for a general explanation of this virtual method.

Reimplementowana z QCPLayoutElement.

void QCPLayoutInset::setInsetAlignment	(	int	index,
		Qt::Alignment	alignment
	)

If the inset placement (setInsetPlacement) is ipBorderAligned, this function is used to set the alignment of the element with the specified index to alignment.

alignment is an or combination of the following alignment flags: Qt::AlignLeft, Qt::AlignHCenter, Qt::AlighRight, Qt::AlignTop, Qt::AlignVCenter, Qt::AlignBottom. Any other alignment flags will be ignored.

void QCPLayoutInset::setInsetPlacement	(	int	index,
		QCPLayoutInset::InsetPlacement	placement
	)

Sets the inset placement type of the element with the specified index to placement.

Zobacz również: InsetPlacement

void QCPLayoutInset::setInsetRect	(	int	index,
		const QRectF &	rect
	)

If the inset placement (setInsetPlacement) is ipFree, this function is used to set the position and size of the element with the specified index to rect.

rect is given in fractions of the whole inset layout rect. So an inset with rect (0, 0, 1, 1) will span the entire layout. An inset with rect (0.6, 0.1, 0.35, 0.35) will be in the top right corner of the layout, with 35% width and height of the parent layout.

Note that the minimum and maximum sizes of the embedded element (QCPLayoutElement::setMinimumSize, QCPLayoutElement::setMaximumSize) are enforced.

void QCPLayoutInset::simplify ( )

inlinevirtual

The QCPInsetLayout does not need simplification since it can never have empty cells due to its linear index structure. This method does nothing.

Reimplementowana z QCPLayout.

bool QCPLayoutInset::take ( QCPLayoutElement * element )

virtual

Removes the specified element from the layout and returns true on success.

If the element isn't in this layout, returns false.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

Zobacz również: takeAt

Implementuje QCPLayout.

QCPLayoutElement * QCPLayoutInset::takeAt ( int index )

virtual

Removes the element with the given index from the layout and returns it.

If the index is invalid or the cell with that index is empty, returns 0.

Note that some layouts don't remove the respective cell right away but leave an empty cell after successful removal of the layout element. To collapse empty cells, use simplify.

Zobacz również: elementAt, take

Implementuje QCPLayout.

void QCPLayoutInset::updateLayout ( )

virtual

Reimplementowana z QCPLayout.

Dokumentacja atrybutów składowych

QList<QCPLayoutElement*> QCPLayoutInset::mElements

protected

QList<Qt::Alignment> QCPLayoutInset::mInsetAlignment

protected

QList<InsetPlacement> QCPLayoutInset::mInsetPlacement

protected

QList<QRectF> QCPLayoutInset::mInsetRect

protected
