Dokumentacja klasy QCPPlottableLegendItem

A legend item representing a plottable with an icon and the plottable name. Więcej...

#include <qcustomplot.hh>

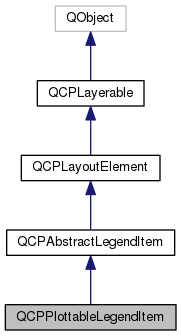

Diagram dziedziczenia dla QCPPlottableLegendItem
Inheritance graph
[legenda]

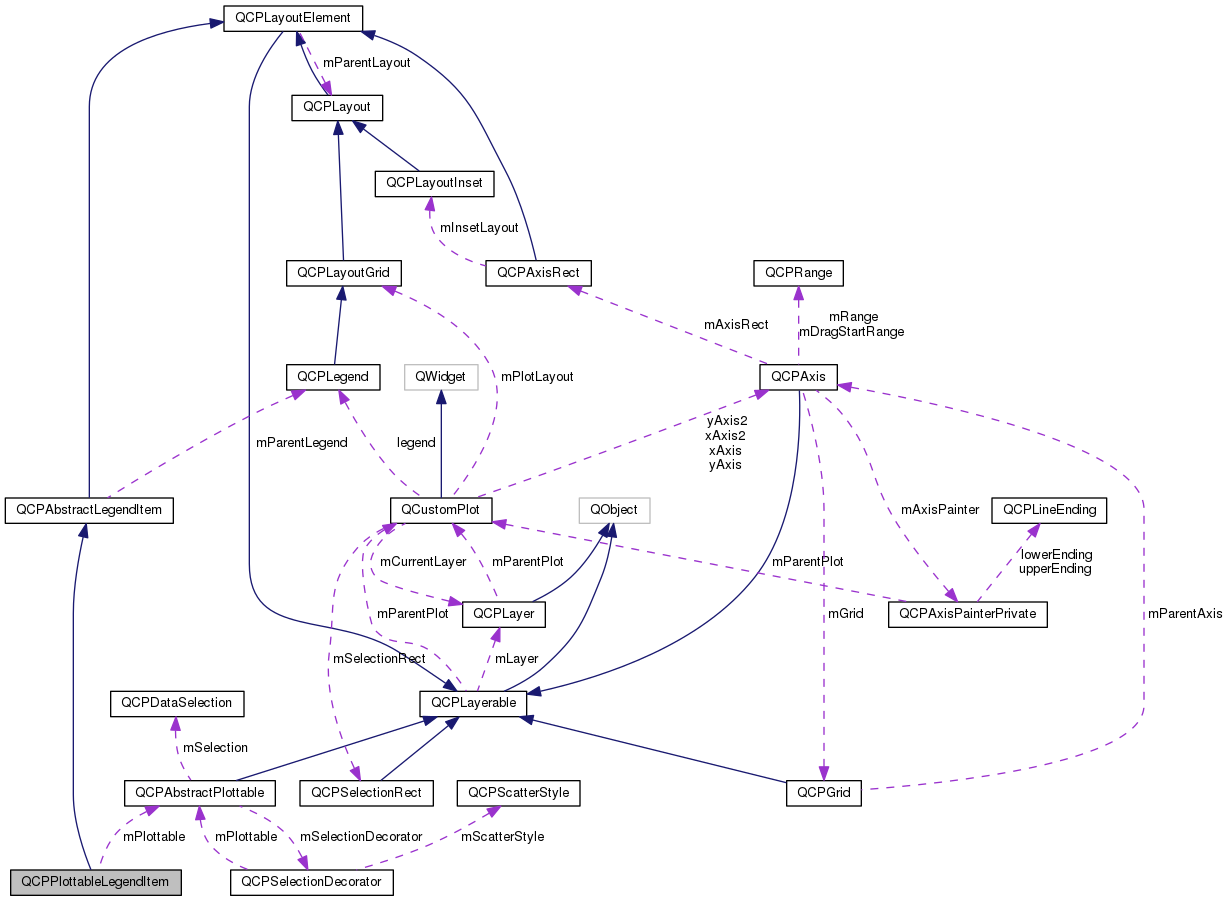

Diagram współpracy dla QCPPlottableLegendItem:
Collaboration graph
[legenda]

Metody publiczne

 QCPPlottableLegendItem (QCPLegend *parent, QCPAbstractPlottable *plottable)

QCPAbstractPlottable * plottable ()

- Metody publiczne dziedziczone z QCPAbstractLegendItem
 QCPAbstractLegendItem (QCPLegend *parent)

QCPLegend * parentLegend () const

QFont font () const

QColor textColor () const

QFont selectedFont () const

QColor selectedTextColor () const

bool selectable () const

bool selected () const

void setFont (const QFont &font)

void setTextColor (const QColor &color)

void setSelectedFont (const QFont &font)

void setSelectedTextColor (const QColor &color)

Q_SLOT void setSelectable (bool selectable)

Q_SLOT void setSelected (bool selected)

virtual double selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

- Metody publiczne dziedziczone z QCPLayoutElement
 QCPLayoutElement (QCustomPlot *parentPlot=0)

virtual ~QCPLayoutElement ()

QCPLayout * layout () const

QRect rect () const

QRect outerRect () const

QMargins margins () const

QMargins minimumMargins () const

QCP::MarginSides autoMargins () const

QSize minimumSize () const

QSize maximumSize () const

SizeConstraintRect sizeConstraintRect () const

QCPMarginGroup * marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * > marginGroups () const

void setOuterRect (const QRect &rect)

void setMargins (const QMargins &margins)

void setMinimumMargins (const QMargins &margins)

void setAutoMargins (QCP::MarginSides sides)

void setMinimumSize (const QSize &size)

void setMinimumSize (int width, int height)

void setMaximumSize (const QSize &size)

void setMaximumSize (int width, int height)

void setSizeConstraintRect (SizeConstraintRect constraintRect)

void setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

virtual void update (UpdatePhase phase)

virtual QSize maximumOuterSizeHint () const

virtual QList< QCPLayoutElement * > elements (bool recursive) const

- Metody publiczne dziedziczone z QCPLayerable
 QCPLayerable (QCustomPlot *plot, QString targetLayer=QString(), QCPLayerable *parentLayerable=0)

virtual ~QCPLayerable ()

bool visible () const

QCustomPlot * parentPlot () const

QCPLayerable * parentLayerable () const

QCPLayer * layer () const

bool antialiased () const

void setVisible (bool on)

Q_SLOT bool setLayer (QCPLayer *layer)

bool setLayer (const QString &layerName)

void setAntialiased (bool enabled)

bool realVisibility () const


Metody chronione

virtual void draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual QSize minimumOuterSizeHint () const Q_DECL_OVERRIDE

QPen getIconBorderPen () const

QColor getTextColor () const

QFont getFont () const

- Metody chronione dziedziczone z QCPAbstractLegendItem
virtual QCP::Interaction selectionCategory () const Q_DECL_OVERRIDE

virtual void applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual QRect clipRect () const Q_DECL_OVERRIDE

virtual void selectEvent (QMouseEvent *event, bool additive, const QVariant &details, bool *selectionStateChanged) Q_DECL_OVERRIDE

virtual void deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

- Metody chronione dziedziczone z QCPLayoutElement
virtual int calculateAutoMargin (QCP::MarginSide side)

virtual void layoutChanged ()

virtual void parentPlotInitialized (QCustomPlot *parentPlot) Q_DECL_OVERRIDE

- Metody chronione dziedziczone z QCPLayerable
virtual void mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void wheelEvent (QWheelEvent *event)

void initializeParentPlot (QCustomPlot *parentPlot)

void setParentLayerable (QCPLayerable *parentLayerable)

bool moveToLayer (QCPLayer *layer, bool prepend)

void applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const


Atrybuty chronione

QCPAbstractPlottable * mPlottable

- Atrybuty chronione dziedziczone z QCPAbstractLegendItem
QCPLegend * mParentLegend

QFont mFont

QColor mTextColor

QFont mSelectedFont

QColor mSelectedTextColor

bool mSelectable

bool mSelected

- Atrybuty chronione dziedziczone z QCPLayoutElement
QCPLayout * mParentLayout

QSize mMinimumSize

QSize mMaximumSize

SizeConstraintRect mSizeConstraintRect

QRect mRect

QRect mOuterRect

QMargins mMargins

QMargins mMinimumMargins

QCP::MarginSides mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * > mMarginGroups

- Atrybuty chronione dziedziczone z QCPLayerable
bool mVisible

QCustomPlot * mParentPlot

QPointer< QCPLayerable > mParentLayerable

QCPLayer * mLayer

bool mAntialiased


Dodatkowe Dziedziczone Składowe

- Typy publiczne dziedziczone z QCPLayoutElement
enum  UpdatePhase { upPreparation, upMargins, upLayout }

enum  SizeConstraintRect { scrInnerRect, scrOuterRect }

- Sygnały dziedziczone z QCPAbstractLegendItem
void selectionChanged (bool selected)

void selectableChanged (bool selectable)

- Sygnały dziedziczone z QCPLayerable
void layerChanged (QCPLayer *newLayer)


Opis szczegółowy

This is the standard legend item for plottables. It displays an icon of the plottable next to the plottable name. The icon is drawn by the respective plottable itself (QCPAbstractPlottable::drawLegendIcon), and tries to give an intuitive symbol for the plottable. For example, the QCPGraph draws a centered horizontal line and/or a single scatter point in the middle.

Legend items of this type are always associated with one plottable (retrievable via the plottable() function and settable with the constructor). You may change the font of the plottable name with setFont. Icon padding and border pen is taken from the parent QCPLegend, see QCPLegend::setIconBorderPen and QCPLegend::setIconTextPadding.

The function QCPAbstractPlottable::addToLegend/QCPAbstractPlottable::removeFromLegend creates/removes legend items of this type.

Since QCPLegend is based on QCPLayoutGrid, a legend item itself is just a subclass of QCPLayoutElement. While it could be added to a legend (or any other layout) via the normal layout interface, QCPLegend has specialized functions for handling legend items conveniently, see the documentation of QCPLegend.

Dokumentacja konstruktora i destruktora

QCPPlottableLegendItem::QCPPlottableLegendItem ( QCPLegend *  parent,
QCPAbstractPlottable *  plottable
)

Creates a new legend item associated with plottable.

Once it's created, it can be added to the legend via QCPLegend::addItem.

A more convenient way of adding/removing a plottable to/from the legend is via the functions QCPAbstractPlottable::addToLegend and QCPAbstractPlottable::removeFromLegend.

Dokumentacja funkcji składowych

void QCPPlottableLegendItem::draw ( QCPPainter *  painter)
protectedvirtual

Implementuje QCPAbstractLegendItem.

QFont QCPPlottableLegendItem::getFont ( ) const
protected
QPen QCPPlottableLegendItem::getIconBorderPen ( ) const
protected
QColor QCPPlottableLegendItem::getTextColor ( ) const
protected
QSize QCPPlottableLegendItem::minimumOuterSizeHint ( ) const
protectedvirtual

Returns the suggested minimum size this layout element (the outerRect) may be compressed to, if no manual minimum size is set.

if a minimum size (setMinimumSize) was not set manually, parent layouts use the returned size (usually indirectly through QCPLayout::getFinalMinimumOuterSize) to determine the minimum allowed size of this layout element.

A manual minimum size is considered set if it is non-zero.

The default implementation simply returns the sum of the horizontal margins for the width and the sum of the vertical margins for the height. Reimplementations may use their detailed knowledge about the layout element's content to provide size hints.

Reimplementowana z QCPLayoutElement.

QCPAbstractPlottable* QCPPlottableLegendItem::plottable ( )
inline

Dokumentacja atrybutów składowych

QCPAbstractPlottable* QCPPlottableLegendItem::mPlottable
protected
Dokumentacja dla tej klasy została wygenerowana z plików:
