Dokumentacja klasy QCPSelectionDecorator

Controls how a plottable's data selection is drawn. Więcej...

#include <qcustomplot.hh>

Diagram dziedziczenia dla QCPSelectionDecorator

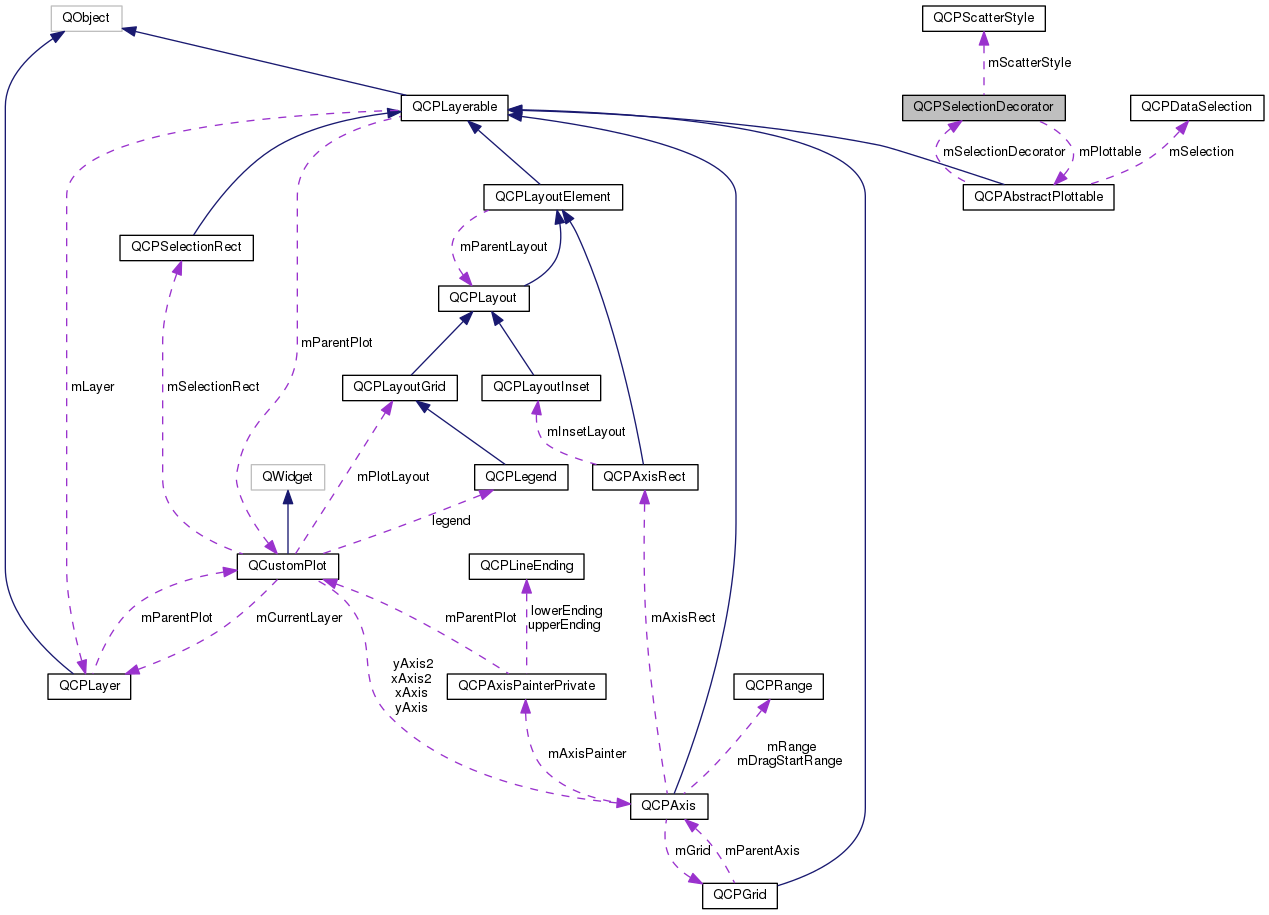

Diagram współpracy dla QCPSelectionDecorator:

Metody publiczne
	QCPSelectionDecorator ()
virtual	~QCPSelectionDecorator ()
QPen	pen () const
QBrush	brush () const
QCPScatterStyle	scatterStyle () const
QCPScatterStyle::ScatterProperties	usedScatterProperties () const
void	setPen (const QPen &pen)
void	setBrush (const QBrush &brush)
void	setScatterStyle (const QCPScatterStyle &scatterStyle, QCPScatterStyle::ScatterProperties usedProperties=QCPScatterStyle::spPen)
void	setUsedScatterProperties (const QCPScatterStyle::ScatterProperties &properties)
void	applyPen (QCPPainter *painter) const
void	applyBrush (QCPPainter *painter) const
QCPScatterStyle	getFinalScatterStyle (const QCPScatterStyle &unselectedStyle) const
virtual void	copyFrom (const QCPSelectionDecorator *other)
virtual void	drawDecoration (QCPPainter *painter, QCPDataSelection selection)

Metody chronione
virtual bool	registerWithPlottable (QCPAbstractPlottable *plottable)

Atrybuty chronione
QPen	mPen
QBrush	mBrush
QCPScatterStyle	mScatterStyle
QCPScatterStyle::ScatterProperties	mUsedScatterProperties
QCPAbstractPlottable *	mPlottable

Przyjaciele
class	QCPAbstractPlottable

Opis szczegółowy

Each QCPAbstractPlottable instance has one QCPSelectionDecorator (accessible via QCPAbstractPlottable::selectionDecorator) and uses it when drawing selected segments of its data.

The selection decorator controls both pen (setPen) and brush (setBrush), as well as the scatter style (setScatterStyle) if the plottable draws scatters. Since a QCPScatterStyle is itself composed of different properties such as color shape and size, the decorator allows specifying exactly which of those properties shall be used for the selected data point, via setUsedScatterProperties.

A QCPSelectionDecorator subclass instance can be passed to a plottable via QCPAbstractPlottable::setSelectionDecorator, allowing greater customizability of the appearance of selected segments.

Use copyFrom to easily transfer the settings of one decorator to another one. This is especially useful since plottables take ownership of the passed selection decorator, and thus the same decorator instance can not be passed to multiple plottables.

Selection decorators can also themselves perform drawing operations by reimplementing drawDecoration, which is called by the plottable's draw method. The base class QCPSelectionDecorator does not make use of this however. For example, QCPSelectionDecoratorBracket draws brackets around selected data segments.

Dokumentacja konstruktora i destruktora

QCPSelectionDecorator::QCPSelectionDecorator

(

)

Creates a new QCPSelectionDecorator instance with default values

QCPSelectionDecorator::~QCPSelectionDecorator ( )

virtual

Dokumentacja funkcji składowych

void QCPSelectionDecorator::applyBrush

(

QCPPainter *

painter

)

const

Sets the brush of painter to the brush of this selection decorator.

Zobacz również

applyPen, getFinalScatterStyle

void QCPSelectionDecorator::applyPen

(

QCPPainter *

painter

)

const

Sets the pen of painter to the pen of this selection decorator.

Zobacz również

applyBrush, getFinalScatterStyle

QBrush QCPSelectionDecorator::brush ( ) const

inline

void QCPSelectionDecorator::copyFrom ( const QCPSelectionDecorator *  other )

virtual

Copies all properties (e.g. color, fill, scatter style) of the other selection decorator to this selection decorator.

void QCPSelectionDecorator::drawDecoration ( QCPPainter *  painter, QCPDataSelection  selection  )

virtual

This method is called by all plottables' draw methods to allow custom selection decorations to be drawn. Use the passed painter to perform the drawing operations. selection carries the data selection for which the decoration shall be drawn.

The default base class implementation of QCPSelectionDecorator has no special decoration, so this method does nothing.

Reimplementowana w QCPSelectionDecoratorBracket.

QCPScatterStyle QCPSelectionDecorator::getFinalScatterStyle

(

const QCPScatterStyle &

unselectedStyle

)

const

Returns the scatter style that the parent plottable shall use for selected scatter points. The plottable's original (unselected) scatter style must be passed as unselectedStyle. Depending on the setting of setUsedScatterProperties, the returned scatter style is a mixture of this selecion decorator's scatter style (setScatterStyle), and unselectedStyle.

Zobacz również

applyPen, applyBrush, setScatterStyle

QPen QCPSelectionDecorator::pen ( ) const

inline

bool QCPSelectionDecorator::registerWithPlottable ( QCPAbstractPlottable *  plottable )

protectedvirtual

QCPScatterStyle QCPSelectionDecorator::scatterStyle ( ) const

inline

void QCPSelectionDecorator::setBrush

(

const QBrush &

brush

)

Sets the brush that will be used by the parent plottable to draw selected data segments.

void QCPSelectionDecorator::setPen

(

const QPen &

pen

)

Sets the pen that will be used by the parent plottable to draw selected data segments.

void QCPSelectionDecorator::setScatterStyle	(	const QCPScatterStyle &	scatterStyle,
		QCPScatterStyle::ScatterProperties	usedProperties = QCPScatterStyle::spPen
	)

Sets the scatter style that will be used by the parent plottable to draw scatters in selected data segments.

usedProperties specifies which parts of the passed scatterStyle will be used by the plottable. The used properties can also be changed via setUsedScatterProperties.

void QCPSelectionDecorator::setUsedScatterProperties

(

const QCPScatterStyle::ScatterProperties &

properties

)

Use this method to define which properties of the scatter style (set via setScatterStyle) will be used for selected data segments. All properties of the scatter style that are not specified in properties will remain as specified in the plottable's original scatter style.

Zobacz również

QCPScatterStyle::ScatterProperty

QCPScatterStyle::ScatterProperties QCPSelectionDecorator::usedScatterProperties ( ) const

inline

Dokumentacja przyjaciół i funkcji związanych

friend class QCPAbstractPlottable

friend

Dokumentacja atrybutów składowych

QBrush QCPSelectionDecorator::mBrush

protected

QPen QCPSelectionDecorator::mPen

protected

QCPAbstractPlottable* QCPSelectionDecorator::mPlottable

protected

QCPScatterStyle QCPSelectionDecorator::mScatterStyle

protected

QCPScatterStyle::ScatterProperties QCPSelectionDecorator::mUsedScatterProperties

protected

---

Dokumentacja dla tej klasy została wygenerowana z plików:

• qcustomplot.hh
• qcustomplot.cpp
