A plottable representing a financial stock chart. Więcej...

#include <qcustomplot.hh>

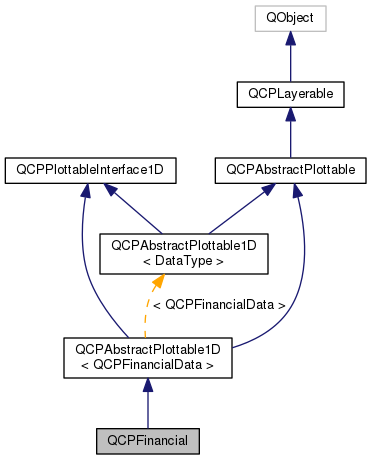

Diagram dziedziczenia dla QCPFinancial

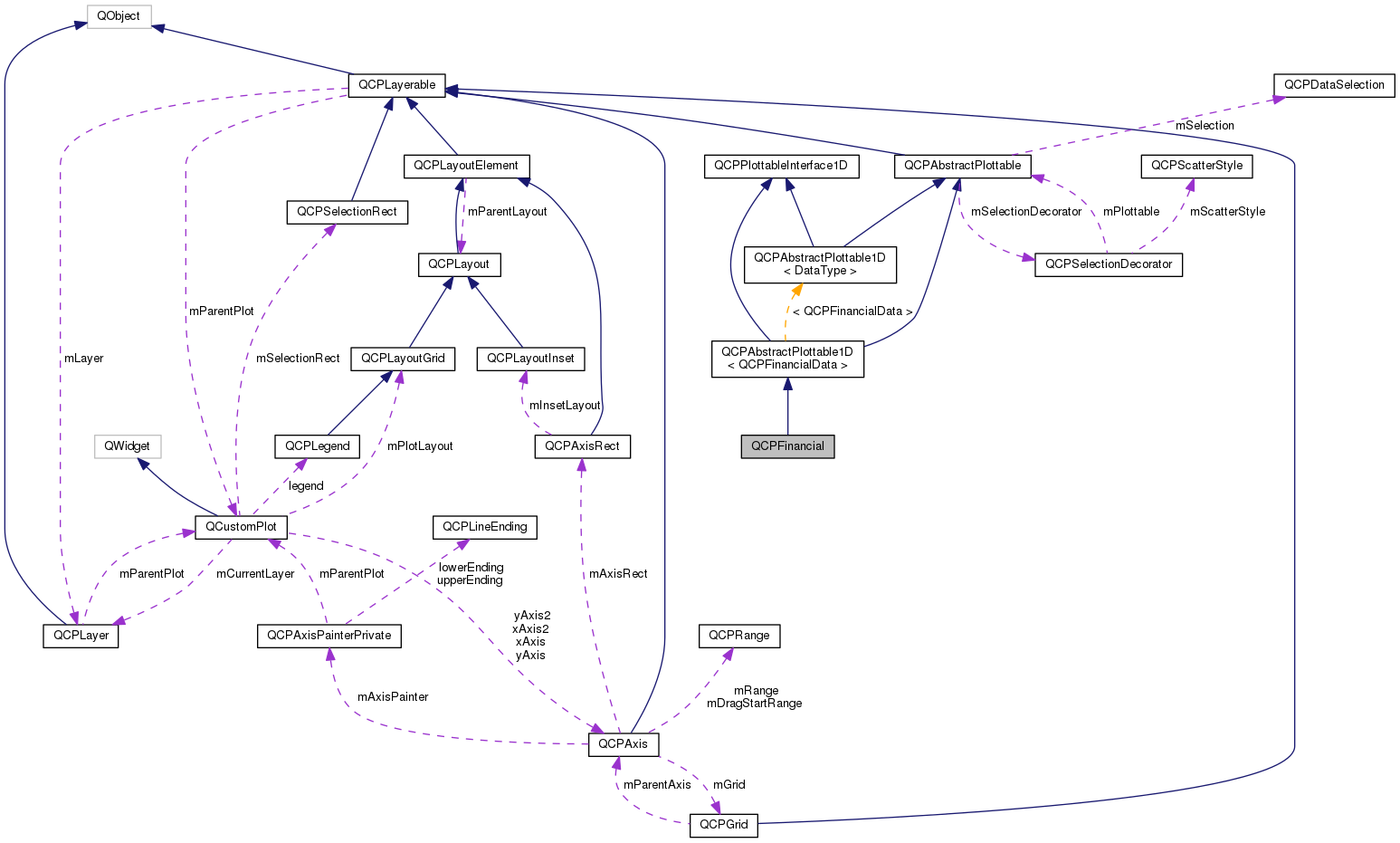

Diagram współpracy dla QCPFinancial:

[legenda]

Typy publiczne
enum	WidthType { wtAbsolute, wtAxisRectRatio, wtPlotCoords }

enum	ChartStyle { csOhlc, csCandlestick }

Metody publiczne
	QCPFinancial (QCPAxis keyAxis, QCPAxis valueAxis)

virtual	~QCPFinancial ()

QSharedPointer< QCPFinancialDataContainer >	data () const

ChartStyle	chartStyle () const

double	width () const

WidthType	widthType () const

bool	twoColored () const

QBrush	brushPositive () const

QBrush	brushNegative () const

QPen	penPositive () const

QPen	penNegative () const

void	setData (QSharedPointer< QCPFinancialDataContainer > data)

void	setData (const QVector< double > &keys, const QVector< double > &open, const QVector< double > &high, const QVector< double > &low, const QVector< double > &close, bool alreadySorted=false)

void	setChartStyle (ChartStyle style)

void	setWidth (double width)

void	setWidthType (WidthType widthType)

void	setTwoColored (bool twoColored)

void	setBrushPositive (const QBrush &brush)

void	setBrushNegative (const QBrush &brush)

void	setPenPositive (const QPen &pen)

void	setPenNegative (const QPen &pen)

void	addData (const QVector< double > &keys, const QVector< double > &open, const QVector< double > &high, const QVector< double > &low, const QVector< double > &close, bool alreadySorted=false)

void	addData (double key, double open, double high, double low, double close)

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const Q_DECL_OVERRIDE

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

virtual QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const Q_DECL_OVERRIDE

virtual QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const Q_DECL_OVERRIDE

Metody publiczne dziedziczone z QCPAbstractPlottable1D< QCPFinancialData >
	QCPAbstractPlottable1D (QCPAxis keyAxis, QCPAxis valueAxis)

virtual	~QCPAbstractPlottable1D ()

virtual int	dataCount () const Q_DECL_OVERRIDE

virtual double	dataMainKey (int index) const Q_DECL_OVERRIDE

virtual double	dataSortKey (int index) const Q_DECL_OVERRIDE

virtual double	dataMainValue (int index) const Q_DECL_OVERRIDE

virtual QCPRange	dataValueRange (int index) const Q_DECL_OVERRIDE

virtual QPointF	dataPixelPosition (int index) const Q_DECL_OVERRIDE

virtual bool	sortKeyIsMainKey () const Q_DECL_OVERRIDE

virtual int	findBegin (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE

virtual int	findEnd (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE

virtual QCPPlottableInterface1D *	interface1D () Q_DECL_OVERRIDE

Metody publiczne dziedziczone z QCPAbstractPlottable
	QCPAbstractPlottable (QCPAxis keyAxis, QCPAxis valueAxis)

virtual	~QCPAbstractPlottable ()

QString	name () const

bool	antialiasedFill () const

bool	antialiasedScatters () const

QPen	pen () const

QBrush	brush () const

QCPAxis *	keyAxis () const

QCPAxis *	valueAxis () const

QCP::SelectionType	selectable () const

bool	selected () const

QCPDataSelection	selection () const

QCPSelectionDecorator *	selectionDecorator () const

void	setName (const QString &name)

void	setAntialiasedFill (bool enabled)

void	setAntialiasedScatters (bool enabled)

void	setPen (const QPen &pen)

void	setBrush (const QBrush &brush)

void	setKeyAxis (QCPAxis *axis)

void	setValueAxis (QCPAxis *axis)

Q_SLOT void	setSelectable (QCP::SelectionType selectable)

Q_SLOT void	setSelection (QCPDataSelection selection)

void	setSelectionDecorator (QCPSelectionDecorator *decorator)

void	coordsToPixels (double key, double value, double &x, double &y) const

const QPointF	coordsToPixels (double key, double value) const

void	pixelsToCoords (double x, double y, double &key, double &value) const

void	pixelsToCoords (const QPointF &pixelPos, double &key, double &value) const

void	rescaleAxes (bool onlyEnlarge=false) const

void	rescaleKeyAxis (bool onlyEnlarge=false) const

void	rescaleValueAxis (bool onlyEnlarge=false, bool inKeyRange=false) const

bool	addToLegend (QCPLegend *legend)

bool	addToLegend ()

bool	removeFromLegend (QCPLegend *legend) const

bool	removeFromLegend () const

Metody publiczne dziedziczone z QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Metody publiczne dziedziczone z QCPPlottableInterface1D
virtual	~QCPPlottableInterface1D ()

Statyczne metody publiczne
static QCPFinancialDataContainer	timeSeriesToOhlc (const QVector< double > &time, const QVector< double > &value, double timeBinSize, double timeBinOffset=0)

Metody chronione
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const Q_DECL_OVERRIDE

void	drawOhlcPlot (QCPPainter *painter, const QCPFinancialDataContainer::const_iterator &begin, const QCPFinancialDataContainer::const_iterator &end, bool isSelected)

void	drawCandlestickPlot (QCPPainter *painter, const QCPFinancialDataContainer::const_iterator &begin, const QCPFinancialDataContainer::const_iterator &end, bool isSelected)

double	getPixelWidth (double key, double keyPixel) const

double	ohlcSelectTest (const QPointF &pos, const QCPFinancialDataContainer::const_iterator &begin, const QCPFinancialDataContainer::const_iterator &end, QCPFinancialDataContainer::const_iterator &closestDataPoint) const

double	candlestickSelectTest (const QPointF &pos, const QCPFinancialDataContainer::const_iterator &begin, const QCPFinancialDataContainer::const_iterator &end, QCPFinancialDataContainer::const_iterator &closestDataPoint) const

void	getVisibleDataBounds (QCPFinancialDataContainer::const_iterator &begin, QCPFinancialDataContainer::const_iterator &end) const

QRectF	selectionHitBox (QCPFinancialDataContainer::const_iterator it) const

Metody chronione dziedziczone z QCPAbstractPlottable1D< QCPFinancialData >
void	getDataSegments (QList< QCPDataRange > &selectedSegments, QList< QCPDataRange > &unselectedSegments) const

void	drawPolyline (QCPPainter *painter, const QVector< QPointF > &lineData) const

Metody chronione dziedziczone z QCPAbstractPlottable
virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

void	applyFillAntialiasingHint (QCPPainter *painter) const

void	applyScattersAntialiasingHint (QCPPainter *painter) const

Metody chronione dziedziczone z QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Atrybuty chronione
ChartStyle	mChartStyle

double	mWidth

WidthType	mWidthType

bool	mTwoColored

QBrush	mBrushPositive

QBrush	mBrushNegative

QPen	mPenPositive

QPen	mPenNegative

Atrybuty chronione dziedziczone z QCPAbstractPlottable1D< QCPFinancialData >
QSharedPointer< QCPDataContainer< QCPFinancialData > >	mDataContainer

Atrybuty chronione dziedziczone z QCPAbstractPlottable
QString	mName

bool	mAntialiasedFill

bool	mAntialiasedScatters

QPen	mPen

QBrush	mBrush

QPointer< QCPAxis >	mKeyAxis

QPointer< QCPAxis >	mValueAxis

QCP::SelectionType	mSelectable

QCPDataSelection	mSelection

QCPSelectionDecorator *	mSelectionDecorator

Atrybuty chronione dziedziczone z QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Przyjaciele
class	QCustomPlot

class	QCPLegend

Dodatkowe Dziedziczone Składowe
Sygnały dziedziczone z QCPAbstractPlottable
void	selectionChanged (bool selected)

void	selectionChanged (const QCPDataSelection &selection)

void	selectableChanged (QCP::SelectionType selectable)

Sygnały dziedziczone z QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Opis szczegółowy

This plottable represents time series data binned to certain intervals, mainly used for stock charts. The two common representations OHLC (Open-High-Low-Close) bars and Candlesticks can be set via setChartStyle.

The data is passed via setData as a set of open/high/low/close values at certain keys (typically times). This means the data must be already binned appropriately. If data is only available as a series of values (e.g. price against time), you can use the static convenience function timeSeriesToOhlc to generate binned OHLC-data which can then be passed to setData.

The width of the OHLC bars/candlesticks can be controlled with setWidth and setWidthType. A typical choice is to set the width type to wtPlotCoords (the default) and the width to (or slightly less than) one time bin interval width.

Changing the appearance

Charts can be either single- or two-colored (setTwoColored). If set to be single-colored, lines are drawn with the plottable's pen (setPen) and fills with the brush (setBrush).

If set to two-colored, positive changes of the value during an interval (close >= open) are represented with a different pen and brush than negative changes (close < open). These can be configured with setPenPositive, setPenNegative, setBrushPositive, and setBrushNegative. In two-colored mode, the normal plottable pen/brush is ignored. Upon selection however, the normal selected pen/brush (provided by the selectionDecorator) is used, irrespective of whether the chart is single- or two-colored.

Usage

Like all data representing objects in QCustomPlot, the QCPFinancial is a plottable (QCPAbstractPlottable). So the plottable-interface of QCustomPlot applies (QCustomPlot::plottable, QCustomPlot::removePlottable, etc.)

Usually, you first create an instance:

which registers it with the QCustomPlot instance of the passed axes. Note that this QCustomPlot instance takes ownership of the plottable, so do not delete it manually but use QCustomPlot::removePlottable() instead. The newly created plottable can be modified, e.g.:

Here we have used the static helper method timeSeriesToOhlc, to turn a time-price data series into a 24-hour binned open-high-low-close data series as QCPFinancial uses.

Dokumentacja składowych wyliczanych

enum QCPFinancial::ChartStyle

Defines the possible representations of OHLC data in the plot.

Zobacz również: setChartStyle

Wartości wyliczeń
csOhlc	Open-High-Low-Close bar representation.
csCandlestick	Candlestick representation.

enum QCPFinancial::WidthType

Defines the ways the width of the financial bar can be specified. Thus it defines what the number passed to setWidth actually means.

Zobacz również: setWidthType, setWidth

Wartości wyliczeń
wtAbsolute	width is in absolute pixels
wtAxisRectRatio	width is given by a fraction of the axis rect size
wtPlotCoords	width is in key coordinates and thus scales with the key axis range

Dokumentacja konstruktora i destruktora

QCPFinancial::QCPFinancial	(	QCPAxis *	keyAxis,
		QCPAxis *	valueAxis
	)

explicit

Constructs a financial chart which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y"). keyAxis and valueAxis must reside in the same QCustomPlot instance and not have the same orientation. If either of these restrictions is violated, a corresponding message is printed to the debug output (qDebug), the construction is not aborted, though.

The created QCPFinancial is automatically registered with the QCustomPlot instance inferred from keyAxis. This QCustomPlot instance takes ownership of the QCPFinancial, so do not delete it manually but use QCustomPlot::removePlottable() instead.

QCPFinancial::~QCPFinancial ( )

virtual

Dokumentacja funkcji składowych

void QCPFinancial::addData	(	const QVector< double > &	keys,
		const QVector< double > &	open,
		const QVector< double > &	high,
		const QVector< double > &	low,
		const QVector< double > &	close,
		bool	alreadySorted = `false`
	)

To jest metoda przeciążona, udostępniona dla wygody. Różni się od powyższej metody tylko zestawem akceptowanych argumentów.

Adds the provided points in keys, open, high, low and close to the current data. The provided vectors should have equal length. Else, the number of added points will be the size of the smallest vector.

If you can guarantee that the passed data points are sorted by keys in ascending order, you can set alreadySorted to true, to improve performance by saving a sorting run.

Alternatively, you can also access and modify the data directly via the data method, which returns a pointer to the internal data container.

Zobacz również: timeSeriesToOhlc

void QCPFinancial::addData	(	double	key,
		double	open,
		double	high,
		double	low,
		double	close
	)

To jest metoda przeciążona, udostępniona dla wygody. Różni się od powyższej metody tylko zestawem akceptowanych argumentów.

Adds the provided data point as key, open, high, low and close to the current data.

Alternatively, you can also access and modify the data directly via the data method, which returns a pointer to the internal data container.

Zobacz również: timeSeriesToOhlc

QBrush QCPFinancial::brushNegative ( ) const

inline

QBrush QCPFinancial::brushPositive ( ) const

inline

double QCPFinancial::candlestickSelectTest	(	const QPointF &	pos,
		const QCPFinancialDataContainer::const_iterator &	begin,
		const QCPFinancialDataContainer::const_iterator &	end,
		QCPFinancialDataContainer::const_iterator &	closestDataPoint
	)		const

protected

ChartStyle QCPFinancial::chartStyle ( ) const

inline

QCPFinancialDataContainer * QCPFinancial::data ( ) const

inline

Returns a pointer to the internal data storage of type QCPFinancialDataContainer. You may use it to directly manipulate the data, which may be more convenient and faster than using the regular setData or addData methods, in certain situations.

void QCPFinancial::draw ( QCPPainter * painter )

protectedvirtual

Implementuje QCPAbstractPlottable.

void QCPFinancial::drawCandlestickPlot	(	QCPPainter *	painter,
		const QCPFinancialDataContainer::const_iterator &	begin,
		const QCPFinancialDataContainer::const_iterator &	end,
		bool	isSelected
	)

protected

void QCPFinancial::drawLegendIcon	(	QCPPainter *	painter,
		const QRectF &	rect
	)		const

protectedvirtual

Implementuje QCPAbstractPlottable.

void QCPFinancial::drawOhlcPlot	(	QCPPainter *	painter,
		const QCPFinancialDataContainer::const_iterator &	begin,
		const QCPFinancialDataContainer::const_iterator &	end,
		bool	isSelected
	)

protected

QCPRange QCPFinancial::getKeyRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`
	)		const

virtual

Returns the coordinate range that all data in this plottable span in the key axis dimension. For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

Zobacz również: rescaleAxes, getValueRange

Implementuje QCPAbstractPlottable.

double QCPFinancial::getPixelWidth	(	double	key,
		double	keyPixel
	)		const

protected

QCPRange QCPFinancial::getValueRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`,
		const QCPRange &	inKeyRange = `QCPRange()`
	)		const

virtual

Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension. For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

If inKeyRange has both lower and upper bound set to zero (is equal to QCPRange()), all data points are considered, without any restriction on the keys.

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

Zobacz również: rescaleAxes, getKeyRange

Implementuje QCPAbstractPlottable.

void QCPFinancial::getVisibleDataBounds	(	QCPFinancialDataContainer::const_iterator &	begin,
		QCPFinancialDataContainer::const_iterator &	end
	)		const

protected

double QCPFinancial::ohlcSelectTest	(	const QPointF &	pos,
		const QCPFinancialDataContainer::const_iterator &	begin,
		const QCPFinancialDataContainer::const_iterator &	end,
		QCPFinancialDataContainer::const_iterator &	closestDataPoint
	)		const

protected

QPen QCPFinancial::penNegative ( ) const

inline

QPen QCPFinancial::penPositive ( ) const

inline

QRectF QCPFinancial::selectionHitBox ( QCPFinancialDataContainer::const_iterator it ) const

protected

double QCPFinancial::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

Implements a point-selection algorithm assuming the data (accessed via the 1D data interface) is point-like. Most subclasses will want to reimplement this method again, to provide a more accurate hit test based on the true data visualization geometry.

Reimplementowana z QCPAbstractPlottable1D< QCPFinancialData >.

QCPDataSelection QCPFinancial::selectTestRect	(	const QRectF &	rect,
		bool	onlySelectable
	)		const

virtual

Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect. This is used mainly in the selection rect interaction for data selection (data selection mechanism).

If onlySelectable is true, an empty QCPDataSelection is returned if this plottable is not selectable (i.e. if QCPAbstractPlottable::setSelectable is QCP::stNone).

Nota: rect must be a normalized rect (positive or zero width and height). This is especially important when using the rect of QCPSelectionRect::accepted, which is not necessarily normalized. Use QRect::normalized() when passing a rect which might not be normalized.

Reimplementowana z QCPAbstractPlottable1D< QCPFinancialData >.

void QCPFinancial::setBrushNegative ( const QBrush & brush )

If setTwoColored is set to true, this function controls the brush that is used to draw fills of data points with a negative trend (i.e. bars/candlesticks with close < open).

If twoColored is false, the normal plottable's pen and brush are used (setPen, setBrush).

Zobacz również: setBrushPositive, setPenNegative, setPenPositive

void QCPFinancial::setBrushPositive ( const QBrush & brush )

If setTwoColored is set to true, this function controls the brush that is used to draw fills of data points with a positive trend (i.e. bars/candlesticks with close >= open).

If twoColored is false, the normal plottable's pen and brush are used (setPen, setBrush).

Zobacz również: setBrushNegative, setPenPositive, setPenNegative

void QCPFinancial::setChartStyle ( QCPFinancial::ChartStyle style )

Sets which representation style shall be used to display the OHLC data.

void QCPFinancial::setData ( QSharedPointer< QCPFinancialDataContainer > data )

To jest metoda przeciążona, udostępniona dla wygody. Różni się od powyższej metody tylko zestawem akceptowanych argumentów.

Replaces the current data container with the provided data container.

Since a QSharedPointer is used, multiple QCPFinancials may share the same data container safely. Modifying the data in the container will then affect all financials that share the container. Sharing can be achieved by simply exchanging the data containers wrapped in shared pointers:

If you do not wish to share containers, but create a copy from an existing container, rather use the QCPDataContainer<DataType>::set method on the financial's data container directly:

Zobacz również: addData, timeSeriesToOhlc

void QCPFinancial::setData	(	const QVector< double > &	keys,
		const QVector< double > &	open,
		const QVector< double > &	high,
		const QVector< double > &	low,
		const QVector< double > &	close,
		bool	alreadySorted = `false`
	)

To jest metoda przeciążona, udostępniona dla wygody. Różni się od powyższej metody tylko zestawem akceptowanych argumentów.

Replaces the current data with the provided points in keys, open, high, low and close. The provided vectors should have equal length. Else, the number of added points will be the size of the smallest vector.

If you can guarantee that the passed data points are sorted by keys in ascending order, you can set alreadySorted to true, to improve performance by saving a sorting run.

Zobacz również: addData, timeSeriesToOhlc

void QCPFinancial::setPenNegative ( const QPen & pen )

If setTwoColored is set to true, this function controls the pen that is used to draw outlines of data points with a negative trend (i.e. bars/candlesticks with close < open).

If twoColored is false, the normal plottable's pen and brush are used (setPen, setBrush).

Zobacz również: setPenPositive, setBrushNegative, setBrushPositive

void QCPFinancial::setPenPositive ( const QPen & pen )

If setTwoColored is set to true, this function controls the pen that is used to draw outlines of data points with a positive trend (i.e. bars/candlesticks with close >= open).

If twoColored is false, the normal plottable's pen and brush are used (setPen, setBrush).

Zobacz również: setPenNegative, setBrushPositive, setBrushNegative

void QCPFinancial::setTwoColored ( bool twoColored )

Sets whether this chart shall contrast positive from negative trends per data point by using two separate colors to draw the respective bars/candlesticks.

If twoColored is false, the normal plottable's pen and brush are used (setPen, setBrush).

Zobacz również: setPenPositive, setPenNegative, setBrushPositive, setBrushNegative

void QCPFinancial::setWidth ( double width )

Sets the width of the individual bars/candlesticks to width in plot key coordinates.

A typical choice is to set it to (or slightly less than) one bin interval width.

void QCPFinancial::setWidthType ( QCPFinancial::WidthType widthType )

Sets how the width of the financial bars is defined. See the documentation of WidthType for an explanation of the possible values for widthType.

The default value is wtPlotCoords.

Zobacz również: setWidth

QCPFinancialDataContainer QCPFinancial::timeSeriesToOhlc	(	const QVector< double > &	time,
		const QVector< double > &	value,
		double	timeBinSize,
		double	timeBinOffset = `0`
	)

static

A convenience function that converts time series data (value against time) to OHLC binned data points. The return value can then be passed on to QCPFinancialDataContainer::set(const QCPFinancialDataContainer&).

The size of the bins can be controlled with timeBinSize in the same units as time is given. For example, if the unit of time is seconds and single OHLC/Candlesticks should span an hour each, set timeBinSize to 3600.

timeBinOffset allows to control precisely at what time coordinate a bin should start. The value passed as timeBinOffset doesn't need to be in the range encompassed by the time keys. It merely defines the mathematical offset/phase of the bins that will be used to process the data.

bool QCPFinancial::twoColored ( ) const

inline

double QCPFinancial::width ( ) const

inline

WidthType QCPFinancial::widthType ( ) const

inline

Dokumentacja przyjaciół i funkcji związanych

friend class QCPLegend

friend

friend class QCustomPlot

friend

Dokumentacja atrybutów składowych

QBrush QCPFinancial::mBrushNegative

protected

QBrush QCPFinancial::mBrushPositive

protected

ChartStyle QCPFinancial::mChartStyle

protected

QPen QCPFinancial::mPenNegative

protected

QPen QCPFinancial::mPenPositive

protected

bool QCPFinancial::mTwoColored

protected

double QCPFinancial::mWidth

protected

WidthType QCPFinancial::mWidthType

protected

Dokumentacja dla tej klasy została wygenerowana z plików:

Typy publiczne

Metody publiczne

Statyczne metody publiczne

Metody chronione

Atrybuty chronione

Przyjaciele

Dodatkowe Dziedziczone Składowe

Opis szczegółowy

Changing the appearance

Usage

Dokumentacja składowych wyliczanych

Dokumentacja konstruktora i destruktora

Dokumentacja funkcji składowych

Dokumentacja przyjaciół i funkcji związanych

Dokumentacja atrybutów składowych
