Manages the position of an item. Więcej...

#include <qcustomplot.hh>

Diagram dziedziczenia dla QCPItemPosition

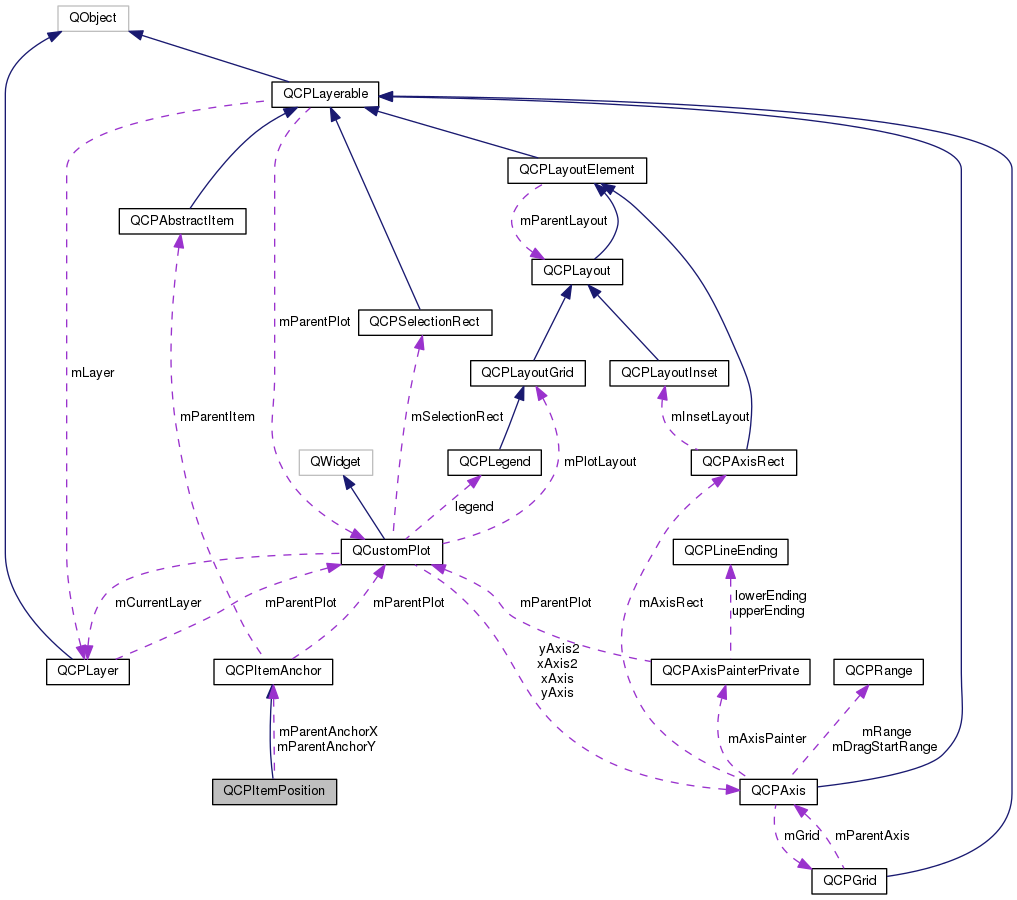

Diagram współpracy dla QCPItemPosition:

[legenda]

Typy publiczne
enum	PositionType { ptAbsolute, ptViewportRatio, ptAxisRectRatio, ptPlotCoords }

Metody publiczne
	QCPItemPosition (QCustomPlot parentPlot, QCPAbstractItem parentItem, const QString &name)

virtual	~QCPItemPosition ()

PositionType	type () const

PositionType	typeX () const

PositionType	typeY () const

QCPItemAnchor *	parentAnchor () const

QCPItemAnchor *	parentAnchorX () const

QCPItemAnchor *	parentAnchorY () const

double	key () const

double	value () const

QPointF	coords () const

QCPAxis *	keyAxis () const

QCPAxis *	valueAxis () const

QCPAxisRect *	axisRect () const

virtual QPointF	pixelPosition () const Q_DECL_OVERRIDE

void	setType (PositionType type)

void	setTypeX (PositionType type)

void	setTypeY (PositionType type)

bool	setParentAnchor (QCPItemAnchor *parentAnchor, bool keepPixelPosition=false)

bool	setParentAnchorX (QCPItemAnchor *parentAnchor, bool keepPixelPosition=false)

bool	setParentAnchorY (QCPItemAnchor *parentAnchor, bool keepPixelPosition=false)

void	setCoords (double key, double value)

void	setCoords (const QPointF &coords)

void	setAxes (QCPAxis keyAxis, QCPAxis valueAxis)

void	setAxisRect (QCPAxisRect *axisRect)

void	setPixelPosition (const QPointF &pixelPosition)

Metody publiczne dziedziczone z QCPItemAnchor
	QCPItemAnchor (QCustomPlot parentPlot, QCPAbstractItem parentItem, const QString &name, int anchorId=-1)

virtual	~QCPItemAnchor ()

QString	name () const

Metody chronione
virtual QCPItemPosition *	toQCPItemPosition () Q_DECL_OVERRIDE

Metody chronione dziedziczone z QCPItemAnchor
void	addChildX (QCPItemPosition *pos)

void	removeChildX (QCPItemPosition *pos)

void	addChildY (QCPItemPosition *pos)

void	removeChildY (QCPItemPosition *pos)

Atrybuty chronione
PositionType	mPositionTypeX

PositionType	mPositionTypeY

QPointer< QCPAxis >	mKeyAxis

QPointer< QCPAxis >	mValueAxis

QPointer< QCPAxisRect >	mAxisRect

double	mKey

double	mValue

QCPItemAnchor *	mParentAnchorX

QCPItemAnchor *	mParentAnchorY

Atrybuty chronione dziedziczone z QCPItemAnchor
QString	mName

QCustomPlot *	mParentPlot

QCPAbstractItem *	mParentItem

int	mAnchorId

QSet< QCPItemPosition * >	mChildrenX

QSet< QCPItemPosition * >	mChildrenY

Opis szczegółowy

Every item has at least one public QCPItemPosition member pointer which provides ways to position the item on the QCustomPlot surface. Some items have multiple positions, for example QCPItemRect has two: topLeft and bottomRight.

QCPItemPosition has a type (PositionType) that can be set with setType. This type defines how coordinates passed to setCoords are to be interpreted, e.g. as absolute pixel coordinates, as plot coordinates of certain axes, etc. For more advanced plots it is also possible to assign different types per X/Y coordinate of the position (see setTypeX, setTypeY). This way an item could be positioned at a fixed pixel distance from the top in the Y direction, while following a plot coordinate in the X direction.

A QCPItemPosition may have a parent QCPItemAnchor, see setParentAnchor. This way you can tie multiple items together. If the QCPItemPosition has a parent, its coordinates (setCoords) are considered to be absolute pixels in the reference frame of the parent anchor, where (0, 0) means directly ontop of the parent anchor. For example, You could attach the start position of a QCPItemLine to the bottom anchor of a QCPItemText to make the starting point of the line always be centered under the text label, no matter where the text is moved to. For more advanced plots, it is possible to assign different parent anchors per X/Y coordinate of the position, see setParentAnchorX, setParentAnchorY. This way an item could follow another item in the X direction but stay at a fixed position in the Y direction. Or even follow item A in X, and item B in Y.

Note that every QCPItemPosition inherits from QCPItemAnchor and thus can itself be used as parent anchor for other positions.

To set the apparent pixel position on the QCustomPlot surface directly, use setPixelPosition. This works no matter what type this QCPItemPosition is or what parent-child situation it is in, as setPixelPosition transforms the coordinates appropriately, to make the position appear at the specified pixel values.

Dokumentacja składowych wyliczanych

enum QCPItemPosition::PositionType

Defines the ways an item position can be specified. Thus it defines what the numbers passed to setCoords actually mean.

Zobacz również: setType

Wartości wyliczeń
ptAbsolute	Static positioning in pixels, starting from the top left corner of the viewport/widget.
ptViewportRatio	Static positioning given by a fraction of the viewport size. For example, if you call setCoords(0, 0), the position will be at the top left corner of the viewport/widget. setCoords(1, 1) will be at the bottom right corner, setCoords(0.5, 0) will be horizontally centered and vertically at the top of the viewport/widget, etc.
ptAxisRectRatio	Static positioning given by a fraction of the axis rect size (see setAxisRect). For example, if you call setCoords(0, 0), the position will be at the top left corner of the axis rect. setCoords(1, 1) will be at the bottom right corner, setCoords(0.5, 0) will be horizontally centered and vertically at the top of the axis rect, etc. You can also go beyond the axis rect by providing negative coordinates or coordinates larger than 1.
ptPlotCoords	Dynamic positioning at a plot coordinate defined by two axes (see setAxes).

Dokumentacja konstruktora i destruktora

QCPItemPosition::QCPItemPosition	(	QCustomPlot *	parentPlot,
		QCPAbstractItem *	parentItem,
		const QString &	name
	)

Creates a new QCPItemPosition. You shouldn't create QCPItemPosition instances directly, even if you want to make a new item subclass. Use QCPAbstractItem::createPosition instead, as explained in the subclassing section of the QCPAbstractItem documentation.

QCPItemPosition::~QCPItemPosition ( )

virtual

Dokumentacja funkcji składowych

QCPAxisRect * QCPItemPosition::axisRect ( ) const

QPointF QCPItemPosition::coords ( ) const

inline

double QCPItemPosition::key ( ) const

inline

QCPAxis* QCPItemPosition::keyAxis ( ) const

inline

QCPItemAnchor * QCPItemPosition::parentAnchor ( ) const

inline

Returns the current parent anchor.

If different parent anchors were set for X and Y (setParentAnchorX, setParentAnchorY), this method returns the parent anchor of the Y coordinate. In that case rather use parentAnchorX() and parentAnchorY().

Zobacz również: setParentAnchor

QCPItemAnchor* QCPItemPosition::parentAnchorX ( ) const

inline

QCPItemAnchor* QCPItemPosition::parentAnchorY ( ) const

inline

QPointF QCPItemPosition::pixelPosition ( ) const

virtual

Returns the final absolute pixel position of the QCPItemPosition on the QCustomPlot surface. It includes all effects of type (setType) and possible parent anchors (setParentAnchor).

Zobacz również: setPixelPosition

Reimplementowana z QCPItemAnchor.

void QCPItemPosition::setAxes	(	QCPAxis *	keyAxis,
		QCPAxis *	valueAxis
	)

When setType is ptPlotCoords, this function may be used to specify the axes the coordinates set with setCoords relate to. By default they are set to the initial xAxis and yAxis of the QCustomPlot.

void QCPItemPosition::setAxisRect ( QCPAxisRect * axisRect )

When setType is ptAxisRectRatio, this function may be used to specify the axis rect the coordinates set with setCoords relate to. By default this is set to the main axis rect of the QCustomPlot.

void QCPItemPosition::setCoords	(	double	key,
		double	value
	)

Sets the coordinates of this QCPItemPosition. What the coordinates mean, is defined by the type (setType, setTypeX, setTypeY).

For example, if the type is ptAbsolute, key and value mean the x and y pixel position on the QCustomPlot surface. In that case the origin (0, 0) is in the top left corner of the QCustomPlot viewport. If the type is ptPlotCoords, key and value mean a point in the plot coordinate system defined by the axes set by setAxes. By default those are the QCustomPlot's xAxis and yAxis. See the documentation of setType for other available coordinate types and their meaning.

If different types were configured for X and Y (setTypeX, setTypeY), key and value must also be provided in the different coordinate systems. Here, the X type refers to key, and the Y type refers to value.

Zobacz również: setPixelPosition

void QCPItemPosition::setCoords ( const QPointF & pos )

To jest metoda przeciążona, udostępniona dla wygody. Różni się od powyższej metody tylko zestawem akceptowanych argumentów.

Sets the coordinates as a QPointF pos where pos.x has the meaning of key and pos.y the meaning of value of the setCoords(double key, double value) method.

bool QCPItemPosition::setParentAnchor	(	QCPItemAnchor *	parentAnchor,
		bool	keepPixelPosition = `false`
	)

Sets the parent of this QCPItemPosition to parentAnchor. This means the position will now follow any position changes of the anchor. The local coordinate system of positions with a parent anchor always is absolute pixels, with (0, 0) being exactly on top of the parent anchor. (Hence the type shouldn't be set to ptPlotCoords for positions with parent anchors.)

if keepPixelPosition is true, the current pixel position of the QCPItemPosition is preserved during reparenting. If it's set to false, the coordinates are set to (0, 0), i.e. the position will be exactly on top of the parent anchor.

To remove this QCPItemPosition from any parent anchor, set parentAnchor to 0.

If the QCPItemPosition previously had no parent and the type is ptPlotCoords, the type is set to ptAbsolute, to keep the position in a valid state.

This method sets the parent anchor for both X and Y directions. It is also possible to set different parents for X and Y, see setParentAnchorX, setParentAnchorY.

bool QCPItemPosition::setParentAnchorX	(	QCPItemAnchor *	parentAnchor,
		bool	keepPixelPosition = `false`
	)

This method sets the parent anchor of the X coordinate to parentAnchor.

For a detailed description of what a parent anchor is, see the documentation of setParentAnchor.

Zobacz również: setParentAnchor, setParentAnchorY

bool QCPItemPosition::setParentAnchorY	(	QCPItemAnchor *	parentAnchor,
		bool	keepPixelPosition = `false`
	)

This method sets the parent anchor of the Y coordinate to parentAnchor.

For a detailed description of what a parent anchor is, see the documentation of setParentAnchor.

Zobacz również: setParentAnchor, setParentAnchorX

void QCPItemPosition::setPixelPosition ( const QPointF & pixelPosition )

Sets the apparent pixel position. This works no matter what type (setType) this QCPItemPosition is or what parent-child situation it is in, as coordinates are transformed appropriately, to make the position finally appear at the specified pixel values.

Only if the type is ptAbsolute and no parent anchor is set, this function's effect is identical to that of setCoords.

Zobacz również: pixelPosition, setCoords

void QCPItemPosition::setType ( QCPItemPosition::PositionType type )

Sets the type of the position. The type defines how the coordinates passed to setCoords should be handled and how the QCPItemPosition should behave in the plot.

The possible values for type can be separated in two main categories:

The position is regarded as a point in plot coordinates. This corresponds to ptPlotCoords and requires two axes that define the plot coordinate system. They can be specified with setAxes. By default, the QCustomPlot's x- and yAxis are used.

The position is fixed on the QCustomPlot surface, i.e. independent of axis ranges. This corresponds to all other types, i.e. ptAbsolute, ptViewportRatio and ptAxisRectRatio. They differ only in the way the absolute position is described, see the documentation of PositionType for details. For ptAxisRectRatio, note that you can specify the axis rect with setAxisRect. By default this is set to the main axis rect.

Note that the position type ptPlotCoords is only available (and sensible) when the position has no parent anchor (setParentAnchor).

If the type is changed, the apparent pixel position on the plot is preserved. This means the coordinates as retrieved with coords() and set with setCoords may change in the process.

This method sets the type for both X and Y directions. It is also possible to set different types for X and Y, see setTypeX, setTypeY.

void QCPItemPosition::setTypeX ( QCPItemPosition::PositionType type )

This method sets the position type of the X coordinate to type.

For a detailed description of what a position type is, see the documentation of setType.

Zobacz również: setType, setTypeY

void QCPItemPosition::setTypeY ( QCPItemPosition::PositionType type )

This method sets the position type of the Y coordinate to type.

For a detailed description of what a position type is, see the documentation of setType.

Zobacz również: setType, setTypeX

virtual QCPItemPosition* QCPItemPosition::toQCPItemPosition ( )

inlineprotectedvirtual

Returns 0 if this instance is merely a QCPItemAnchor, and a valid pointer of type QCPItemPosition* if it actually is a QCPItemPosition (which is a subclass of QCPItemAnchor).

This safe downcast functionality could also be achieved with a dynamic_cast. However, QCustomPlot avoids dynamic_cast to work with projects that don't have RTTI support enabled (e.g. -fno-rtti flag with gcc compiler).

Reimplementowana z QCPItemAnchor.

QCPItemPosition::PositionType * QCPItemPosition::type ( ) const

inline

Returns the current position type.

If different types were set for X and Y (setTypeX, setTypeY), this method returns the type of the X coordinate. In that case rather use typeX() and typeY().

Zobacz również: setType

PositionType QCPItemPosition::typeX ( ) const

inline

PositionType QCPItemPosition::typeY ( ) const

inline

double QCPItemPosition::value ( ) const

inline

QCPAxis* QCPItemPosition::valueAxis ( ) const

inline

Dokumentacja atrybutów składowych

QPointer<QCPAxisRect> QCPItemPosition::mAxisRect

protected

double QCPItemPosition::mKey

protected

QPointer<QCPAxis> QCPItemPosition::mKeyAxis

protected

QCPItemAnchor* QCPItemPosition::mParentAnchorX

protected

QCPItemAnchor * QCPItemPosition::mParentAnchorY

protected

PositionType QCPItemPosition::mPositionTypeX

protected

PositionType QCPItemPosition::mPositionTypeY

protected

double QCPItemPosition::mValue

protected

QPointer<QCPAxis> QCPItemPosition::mValueAxis

protected

Dokumentacja dla tej klasy została wygenerowana z plików:
