#include <qcustomplot.hh>

Diagram dziedziczenia dla QCPItemText

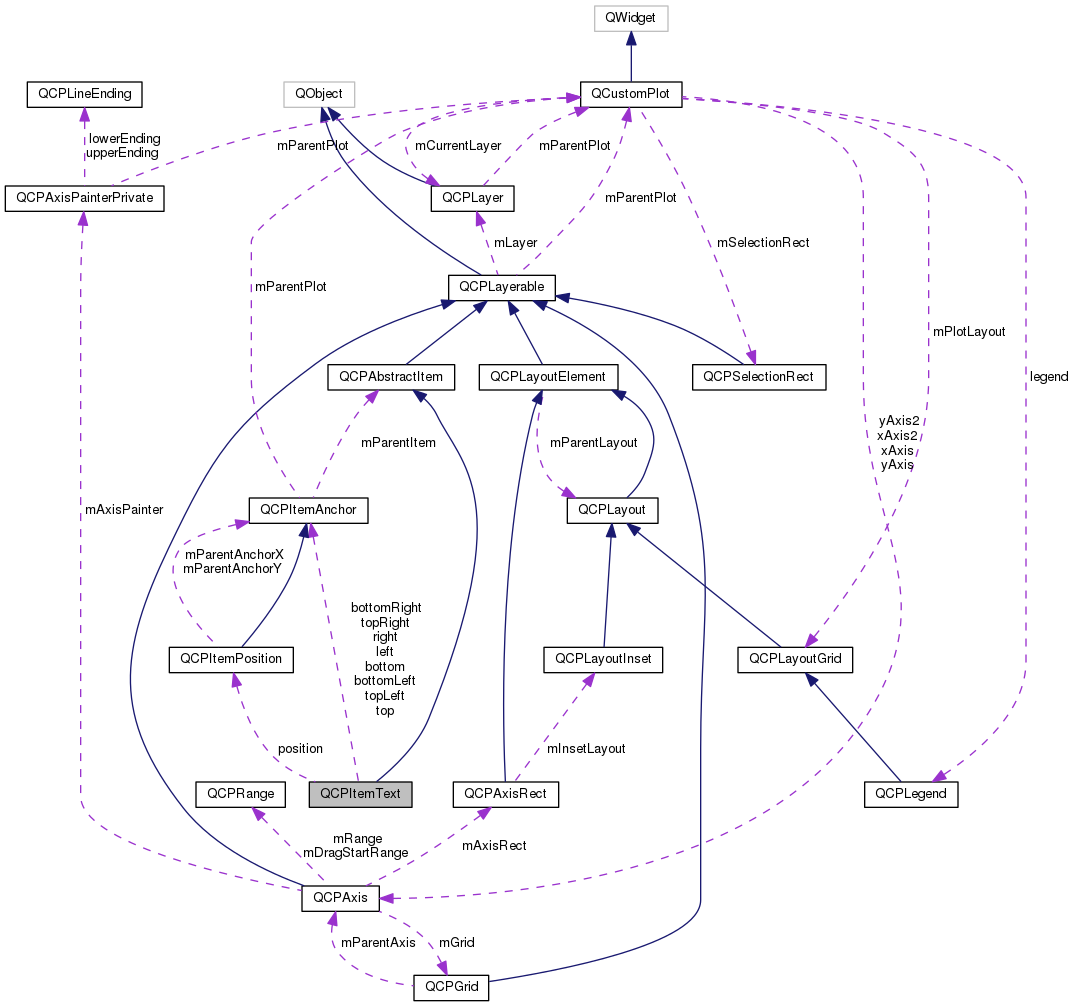

Diagram współpracy dla QCPItemText:

[legenda]

Metody publiczne
	QCPItemText (QCustomPlot *parentPlot)

virtual	~QCPItemText ()

QColor	color () const

QColor	selectedColor () const

QPen	pen () const

QPen	selectedPen () const

QBrush	brush () const

QBrush	selectedBrush () const

QFont	font () const

QFont	selectedFont () const

QString	text () const

Qt::Alignment	positionAlignment () const

Qt::Alignment	textAlignment () const

double	rotation () const

QMargins	padding () const

void	setColor (const QColor &color)

void	setSelectedColor (const QColor &color)

void	setPen (const QPen &pen)

void	setSelectedPen (const QPen &pen)

void	setBrush (const QBrush &brush)

void	setSelectedBrush (const QBrush &brush)

void	setFont (const QFont &font)

void	setSelectedFont (const QFont &font)

void	setText (const QString &text)

void	setPositionAlignment (Qt::Alignment alignment)

void	setTextAlignment (Qt::Alignment alignment)

void	setRotation (double degrees)

void	setPadding (const QMargins &padding)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

Metody publiczne dziedziczone z QCPAbstractItem
	QCPAbstractItem (QCustomPlot *parentPlot)

virtual	~QCPAbstractItem ()

bool	clipToAxisRect () const

QCPAxisRect *	clipAxisRect () const

bool	selectable () const

bool	selected () const

void	setClipToAxisRect (bool clip)

void	setClipAxisRect (QCPAxisRect *rect)

Q_SLOT void	setSelectable (bool selectable)

Q_SLOT void	setSelected (bool selected)

QList< QCPItemPosition * >	positions () const

QList< QCPItemAnchor * >	anchors () const

QCPItemPosition *	position (const QString &name) const

QCPItemAnchor *	anchor (const QString &name) const

bool	hasAnchor (const QString &name) const

Metody publiczne dziedziczone z QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Atrybuty publiczne
QCPItemPosition *const	position

QCPItemAnchor *const	topLeft

QCPItemAnchor *const	top

QCPItemAnchor *const	topRight

QCPItemAnchor *const	right

QCPItemAnchor *const	bottomRight

QCPItemAnchor *const	bottom

QCPItemAnchor *const	bottomLeft

QCPItemAnchor *const	left

Typy chronione
enum	AnchorIndex { aiTopLeft, aiTop, aiTopRight, aiRight, aiBottomRight, aiBottom, aiBottomLeft, aiLeft }

Metody chronione
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual QPointF	anchorPixelPosition (int anchorId) const Q_DECL_OVERRIDE

QPointF	getTextDrawPoint (const QPointF &pos, const QRectF &rect, Qt::Alignment positionAlignment) const

QFont	mainFont () const

QColor	mainColor () const

QPen	mainPen () const

QBrush	mainBrush () const

Metody chronione dziedziczone z QCPAbstractItem
virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

double	rectDistance (const QRectF &rect, const QPointF &pos, bool filledRect) const

QCPItemPosition *	createPosition (const QString &name)

QCPItemAnchor *	createAnchor (const QString &name, int anchorId)

Metody chronione dziedziczone z QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Atrybuty chronione
QColor	mColor

QColor	mSelectedColor

QPen	mPen

QPen	mSelectedPen

QBrush	mBrush

QBrush	mSelectedBrush

QFont	mFont

QFont	mSelectedFont

QString	mText

Qt::Alignment	mPositionAlignment

Qt::Alignment	mTextAlignment

double	mRotation

QMargins	mPadding

Atrybuty chronione dziedziczone z QCPAbstractItem
bool	mClipToAxisRect

QPointer< QCPAxisRect >	mClipAxisRect

QList< QCPItemPosition * >	mPositions

QList< QCPItemAnchor * >	mAnchors

bool	mSelectable

bool	mSelected

Atrybuty chronione dziedziczone z QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Dodatkowe Dziedziczone Składowe
Sygnały dziedziczone z QCPAbstractItem
void	selectionChanged (bool selected)

void	selectableChanged (bool selectable)

Sygnały dziedziczone z QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Opis szczegółowy

Text example. Blue dotted circles are anchors, solid blue discs are positions.

Its position is defined by the member position and the setting of setPositionAlignment. The latter controls which part of the text rect shall be aligned with position.

The text alignment itself (i.e. left, center, right) can be controlled with setTextAlignment.

The text may be rotated around the position point with setRotation.

Dokumentacja składowych wyliczanych

enum QCPItemText::AnchorIndex

protected

Wartości wyliczeń
aiTopLeft
aiTop
aiTopRight
aiRight
aiBottomRight
aiBottom
aiBottomLeft
aiLeft

Dokumentacja konstruktora i destruktora

QCPItemText::QCPItemText ( QCustomPlot * parentPlot )

explicit

Creates a text item and sets default values.

The created item is automatically registered with parentPlot. This QCustomPlot instance takes ownership of the item, so do not delete it manually but use QCustomPlot::removeItem() instead.

QCPItemText::~QCPItemText ( )

virtual

Dokumentacja funkcji składowych

QPointF QCPItemText::anchorPixelPosition ( int anchorId ) const

protectedvirtual

Reimplementowana z QCPAbstractItem.

QBrush QCPItemText::brush ( ) const

inline

QColor QCPItemText::color ( ) const

inline

void QCPItemText::draw ( QCPPainter * painter )

protectedvirtual

Implementuje QCPAbstractItem.

QFont QCPItemText::font ( ) const

inline

QPointF QCPItemText::getTextDrawPoint	(	const QPointF &	pos,
		const QRectF &	rect,
		Qt::Alignment	positionAlignment
	)		const

protected

QBrush QCPItemText::mainBrush ( ) const

protected

QColor QCPItemText::mainColor ( ) const

protected

QFont QCPItemText::mainFont ( ) const

protected

QPen QCPItemText::mainPen ( ) const

protected

QMargins QCPItemText::padding ( ) const

inline

QPen QCPItemText::pen ( ) const

inline

Qt::Alignment QCPItemText::positionAlignment ( ) const

inline

double QCPItemText::rotation ( ) const

inline

QBrush QCPItemText::selectedBrush ( ) const

inline

QColor QCPItemText::selectedColor ( ) const

inline

QFont QCPItemText::selectedFont ( ) const

inline

QPen QCPItemText::selectedPen ( ) const

inline

double QCPItemText::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

This function is used to decide whether a click hits a layerable object or not.

pos is a point in pixel coordinates on the QCustomPlot surface. This function returns the shortest pixel distance of this point to the object. If the object is either invisible or the distance couldn't be determined, -1.0 is returned. Further, if onlySelectable is true and the object is not selectable, -1.0 is returned, too.

If the object is represented not by single lines but by an area like a QCPItemText or the bars of a QCPBars plottable, a click inside the area should also be considered a hit. In these cases this function thus returns a constant value greater zero but still below the parent plot's selection tolerance. (typically the selectionTolerance multiplied by 0.99).

Providing a constant value for area objects allows selecting line objects even when they are obscured by such area objects, by clicking close to the lines (i.e. closer than 0.99*selectionTolerance).

The actual setting of the selection state is not done by this function. This is handled by the parent QCustomPlot when the mouseReleaseEvent occurs, and the finally selected object is notified via the selectEvent/deselectEvent methods.

details is an optional output parameter. Every layerable subclass may place any information in details. This information will be passed to selectEvent when the parent QCustomPlot decides on the basis of this selectTest call, that the object was successfully selected. The subsequent call to selectEvent will carry the details. This is useful for multi-part objects (like QCPAxis). This way, a possibly complex calculation to decide which part was clicked is only done once in selectTest. The result (i.e. the actually clicked part) can then be placed in details. So in the subsequent selectEvent, the decision which part was selected doesn't have to be done a second time for a single selection operation.

You may pass 0 as details to indicate that you are not interested in those selection details.

Zobacz również: selectEvent, deselectEvent, mousePressEvent, wheelEvent, QCustomPlot::setInteractions

Implementuje QCPAbstractItem.

void QCPItemText::setBrush ( const QBrush & brush )

Sets the brush that will be used do fill the background of the text. To disable the background, set brush to Qt::NoBrush.

Zobacz również: setSelectedBrush, setPen, setPadding

void QCPItemText::setColor ( const QColor & color )

Sets the color of the text.

void QCPItemText::setFont ( const QFont & font )

Sets the font of the text.

Zobacz również: setSelectedFont, setColor

void QCPItemText::setPadding ( const QMargins & padding )

Sets the distance between the border of the text rectangle and the text. The appearance (and visibility) of the text rectangle can be controlled with setPen and setBrush.

void QCPItemText::setPen ( const QPen & pen )

Sets the pen that will be used do draw a rectangular border around the text. To disable the border, set pen to Qt::NoPen.

Zobacz również: setSelectedPen, setBrush, setPadding

void QCPItemText::setPositionAlignment ( Qt::Alignment alignment )

Sets which point of the text rect shall be aligned with position.

Examples:

If alignment is Qt::AlignHCenter | Qt::AlignTop, the text will be positioned such that the top of the text rect will be horizontally centered on position.
If alignment is Qt::AlignLeft | Qt::AlignBottom, position will indicate the bottom left corner of the text rect.

If you want to control the alignment of (multi-lined) text within the text rect, use setTextAlignment.

void QCPItemText::setRotation ( double degrees )

Sets the angle in degrees by which the text (and the text rectangle, if visible) will be rotated around position.

void QCPItemText::setSelectedBrush ( const QBrush & brush )

Sets the brush that will be used do fill the background of the text, when the item is selected. To disable the background, set brush to Qt::NoBrush.

Zobacz również: setBrush

void QCPItemText::setSelectedColor ( const QColor & color )

Sets the color of the text that will be used when the item is selected.

void QCPItemText::setSelectedFont ( const QFont & font )

Sets the font of the text that will be used when the item is selected.

Zobacz również: setFont

void QCPItemText::setSelectedPen ( const QPen & pen )

Sets the pen that will be used do draw a rectangular border around the text, when the item is selected. To disable the border, set pen to Qt::NoPen.

Zobacz również: setPen

void QCPItemText::setText ( const QString & text )

Sets the text that will be displayed. Multi-line texts are supported by inserting a line break character, e.g. '
'.

Zobacz również: setFont, setColor, setTextAlignment

void QCPItemText::setTextAlignment ( Qt::Alignment alignment )

Controls how (multi-lined) text is aligned inside the text rect (typically Qt::AlignLeft, Qt::AlignCenter or Qt::AlignRight).

QString QCPItemText::text ( ) const

inline

Qt::Alignment QCPItemText::textAlignment ( ) const

inline

Dokumentacja atrybutów składowych

QCPItemAnchor* const QCPItemText::bottom

QCPItemAnchor* const QCPItemText::bottomLeft

QCPItemAnchor* const QCPItemText::bottomRight

QCPItemAnchor* const QCPItemText::left

QBrush QCPItemText::mBrush

protected

QColor QCPItemText::mColor

protected

QFont QCPItemText::mFont

protected

QMargins QCPItemText::mPadding

protected

QPen QCPItemText::mPen

protected

Qt::Alignment QCPItemText::mPositionAlignment

protected

double QCPItemText::mRotation

protected

QBrush QCPItemText::mSelectedBrush

protected

QColor QCPItemText::mSelectedColor

protected

QFont QCPItemText::mSelectedFont

protected

QPen QCPItemText::mSelectedPen

protected

QString QCPItemText::mText

protected

Qt::Alignment QCPItemText::mTextAlignment

protected

QCPItemPosition* const QCPItemText::position

QCPItemAnchor* const QCPItemText::right

QCPItemAnchor* const QCPItemText::top

QCPItemAnchor* const QCPItemText::topLeft

QCPItemAnchor* const QCPItemText::topRight

Dokumentacja dla tej klasy została wygenerowana z plików:

Metody publiczne

Atrybuty publiczne

Typy chronione

Metody chronione

Atrybuty chronione

Dodatkowe Dziedziczone Składowe

Opis szczegółowy

Dokumentacja składowych wyliczanych

Dokumentacja konstruktora i destruktora

Dokumentacja funkcji składowych

Dokumentacja atrybutów składowych
