#include <qcustomplot.hh>

Diagram dziedziczenia dla QCPItemEllipse

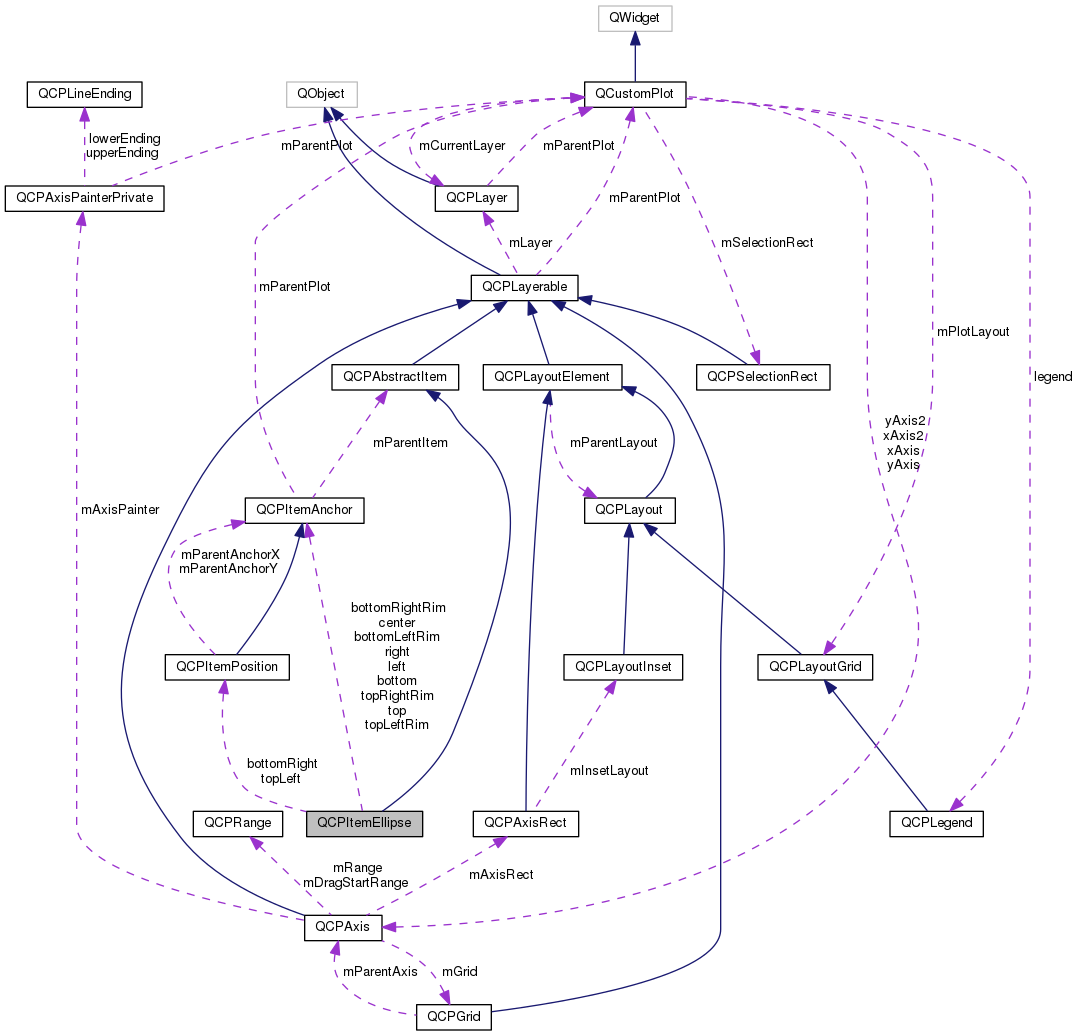

Diagram współpracy dla QCPItemEllipse:

[legenda]

Metody publiczne
	QCPItemEllipse (QCustomPlot *parentPlot)

virtual	~QCPItemEllipse ()

QPen	pen () const

QPen	selectedPen () const

QBrush	brush () const

QBrush	selectedBrush () const

void	setPen (const QPen &pen)

void	setSelectedPen (const QPen &pen)

void	setBrush (const QBrush &brush)

void	setSelectedBrush (const QBrush &brush)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

Metody publiczne dziedziczone z QCPAbstractItem
	QCPAbstractItem (QCustomPlot *parentPlot)

virtual	~QCPAbstractItem ()

bool	clipToAxisRect () const

QCPAxisRect *	clipAxisRect () const

bool	selectable () const

bool	selected () const

void	setClipToAxisRect (bool clip)

void	setClipAxisRect (QCPAxisRect *rect)

Q_SLOT void	setSelectable (bool selectable)

Q_SLOT void	setSelected (bool selected)

QList< QCPItemPosition * >	positions () const

QList< QCPItemAnchor * >	anchors () const

QCPItemPosition *	position (const QString &name) const

QCPItemAnchor *	anchor (const QString &name) const

bool	hasAnchor (const QString &name) const

Metody publiczne dziedziczone z QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Atrybuty publiczne
QCPItemPosition *const	topLeft

QCPItemPosition *const	bottomRight

QCPItemAnchor *const	topLeftRim

QCPItemAnchor *const	top

QCPItemAnchor *const	topRightRim

QCPItemAnchor *const	right

QCPItemAnchor *const	bottomRightRim

QCPItemAnchor *const	bottom

QCPItemAnchor *const	bottomLeftRim

QCPItemAnchor *const	left

QCPItemAnchor *const	center

Typy chronione
enum	AnchorIndex { aiTopLeftRim, aiTop, aiTopRightRim, aiRight, aiBottomRightRim, aiBottom, aiBottomLeftRim, aiLeft, aiCenter }

Metody chronione
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual QPointF	anchorPixelPosition (int anchorId) const Q_DECL_OVERRIDE

QPen	mainPen () const

QBrush	mainBrush () const

Metody chronione dziedziczone z QCPAbstractItem
virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

double	rectDistance (const QRectF &rect, const QPointF &pos, bool filledRect) const

QCPItemPosition *	createPosition (const QString &name)

QCPItemAnchor *	createAnchor (const QString &name, int anchorId)

Metody chronione dziedziczone z QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Atrybuty chronione
QPen	mPen

QPen	mSelectedPen

QBrush	mBrush

QBrush	mSelectedBrush

Atrybuty chronione dziedziczone z QCPAbstractItem
bool	mClipToAxisRect

QPointer< QCPAxisRect >	mClipAxisRect

QList< QCPItemPosition * >	mPositions

QList< QCPItemAnchor * >	mAnchors

bool	mSelectable

bool	mSelected

Atrybuty chronione dziedziczone z QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Dodatkowe Dziedziczone Składowe
Sygnały dziedziczone z QCPAbstractItem
void	selectionChanged (bool selected)

void	selectableChanged (bool selectable)

Sygnały dziedziczone z QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Opis szczegółowy

Ellipse example. Blue dotted circles are anchors, solid blue discs are positions.

It has two positions, topLeft and bottomRight, which define the rect the ellipse will be drawn in.

Dokumentacja składowych wyliczanych

enum QCPItemEllipse::AnchorIndex

protected

Wartości wyliczeń
aiTopLeftRim
aiTop
aiTopRightRim
aiRight
aiBottomRightRim
aiBottom
aiBottomLeftRim
aiLeft
aiCenter

Dokumentacja konstruktora i destruktora

QCPItemEllipse::QCPItemEllipse ( QCustomPlot * parentPlot )

explicit

Creates an ellipse item and sets default values.

The created item is automatically registered with parentPlot. This QCustomPlot instance takes ownership of the item, so do not delete it manually but use QCustomPlot::removeItem() instead.

QCPItemEllipse::~QCPItemEllipse ( )

virtual

Dokumentacja funkcji składowych

QPointF QCPItemEllipse::anchorPixelPosition ( int anchorId ) const

protectedvirtual

Reimplementowana z QCPAbstractItem.

QBrush QCPItemEllipse::brush ( ) const

inline

void QCPItemEllipse::draw ( QCPPainter * painter )

protectedvirtual

Implementuje QCPAbstractItem.

QBrush QCPItemEllipse::mainBrush ( ) const

protected

QPen QCPItemEllipse::mainPen ( ) const

protected

QPen QCPItemEllipse::pen ( ) const

inline

QBrush QCPItemEllipse::selectedBrush ( ) const

inline

QPen QCPItemEllipse::selectedPen ( ) const

inline

double QCPItemEllipse::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

This function is used to decide whether a click hits a layerable object or not.

pos is a point in pixel coordinates on the QCustomPlot surface. This function returns the shortest pixel distance of this point to the object. If the object is either invisible or the distance couldn't be determined, -1.0 is returned. Further, if onlySelectable is true and the object is not selectable, -1.0 is returned, too.

If the object is represented not by single lines but by an area like a QCPItemText or the bars of a QCPBars plottable, a click inside the area should also be considered a hit. In these cases this function thus returns a constant value greater zero but still below the parent plot's selection tolerance. (typically the selectionTolerance multiplied by 0.99).

Providing a constant value for area objects allows selecting line objects even when they are obscured by such area objects, by clicking close to the lines (i.e. closer than 0.99*selectionTolerance).

The actual setting of the selection state is not done by this function. This is handled by the parent QCustomPlot when the mouseReleaseEvent occurs, and the finally selected object is notified via the selectEvent/deselectEvent methods.

details is an optional output parameter. Every layerable subclass may place any information in details. This information will be passed to selectEvent when the parent QCustomPlot decides on the basis of this selectTest call, that the object was successfully selected. The subsequent call to selectEvent will carry the details. This is useful for multi-part objects (like QCPAxis). This way, a possibly complex calculation to decide which part was clicked is only done once in selectTest. The result (i.e. the actually clicked part) can then be placed in details. So in the subsequent selectEvent, the decision which part was selected doesn't have to be done a second time for a single selection operation.

You may pass 0 as details to indicate that you are not interested in those selection details.

Zobacz również: selectEvent, deselectEvent, mousePressEvent, wheelEvent, QCustomPlot::setInteractions

Implementuje QCPAbstractItem.

void QCPItemEllipse::setBrush ( const QBrush & brush )

Sets the brush that will be used to fill the ellipse. To disable filling, set brush to Qt::NoBrush.

Zobacz również: setSelectedBrush, setPen

void QCPItemEllipse::setPen ( const QPen & pen )

Sets the pen that will be used to draw the line of the ellipse

Zobacz również: setSelectedPen, setBrush

void QCPItemEllipse::setSelectedBrush ( const QBrush & brush )

Sets the brush that will be used to fill the ellipse when selected. To disable filling, set brush to Qt::NoBrush.

Zobacz również: setBrush

void QCPItemEllipse::setSelectedPen ( const QPen & pen )

Sets the pen that will be used to draw the line of the ellipse when selected

Zobacz również: setPen, setSelected

Dokumentacja atrybutów składowych

QCPItemAnchor* const QCPItemEllipse::bottom

QCPItemAnchor* const QCPItemEllipse::bottomLeftRim

QCPItemPosition* const QCPItemEllipse::bottomRight

QCPItemAnchor* const QCPItemEllipse::bottomRightRim

QCPItemAnchor* const QCPItemEllipse::center

QCPItemAnchor* const QCPItemEllipse::left

QBrush QCPItemEllipse::mBrush

protected

QPen QCPItemEllipse::mPen

protected

QBrush QCPItemEllipse::mSelectedBrush

protected

QPen QCPItemEllipse::mSelectedPen

protected

QCPItemAnchor* const QCPItemEllipse::right

QCPItemAnchor* const QCPItemEllipse::top

QCPItemPosition* const QCPItemEllipse::topLeft

QCPItemAnchor* const QCPItemEllipse::topLeftRim

QCPItemAnchor* const QCPItemEllipse::topRightRim

Dokumentacja dla tej klasy została wygenerowana z plików:
