An arbitrary pixmap. Więcej...

#include <qcustomplot.hh>

Diagram dziedziczenia dla QCPItemPixmap

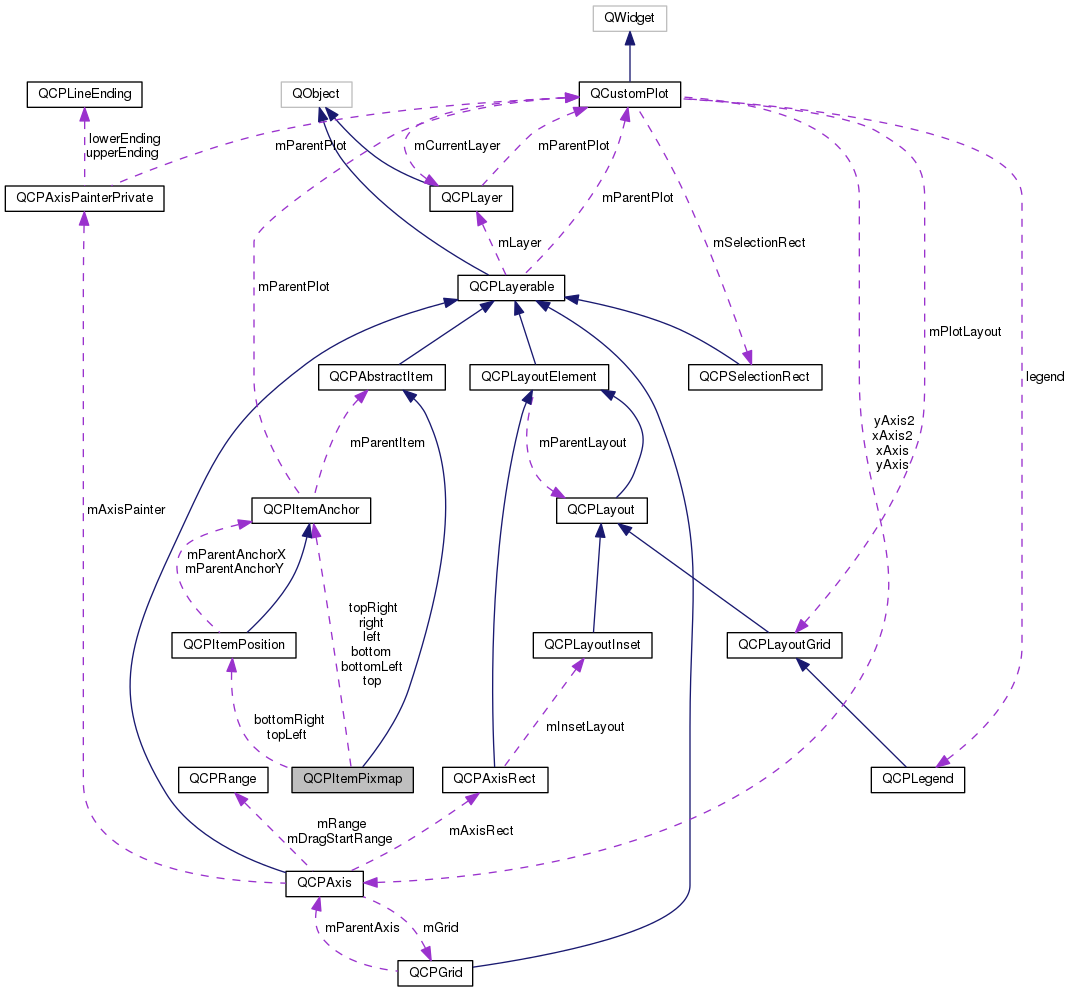

Diagram współpracy dla QCPItemPixmap:

[legenda]

Metody publiczne
	QCPItemPixmap (QCustomPlot *parentPlot)

virtual	~QCPItemPixmap ()

QPixmap	pixmap () const

bool	scaled () const

Qt::AspectRatioMode	aspectRatioMode () const

Qt::TransformationMode	transformationMode () const

QPen	pen () const

QPen	selectedPen () const

void	setPixmap (const QPixmap &pixmap)

void	setScaled (bool scaled, Qt::AspectRatioMode aspectRatioMode=Qt::KeepAspectRatio, Qt::TransformationMode transformationMode=Qt::SmoothTransformation)

void	setPen (const QPen &pen)

void	setSelectedPen (const QPen &pen)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

Metody publiczne dziedziczone z QCPAbstractItem
	QCPAbstractItem (QCustomPlot *parentPlot)

virtual	~QCPAbstractItem ()

bool	clipToAxisRect () const

QCPAxisRect *	clipAxisRect () const

bool	selectable () const

bool	selected () const

void	setClipToAxisRect (bool clip)

void	setClipAxisRect (QCPAxisRect *rect)

Q_SLOT void	setSelectable (bool selectable)

Q_SLOT void	setSelected (bool selected)

QList< QCPItemPosition * >	positions () const

QList< QCPItemAnchor * >	anchors () const

QCPItemPosition *	position (const QString &name) const

QCPItemAnchor *	anchor (const QString &name) const

bool	hasAnchor (const QString &name) const

Metody publiczne dziedziczone z QCPLayerable
	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

virtual	~QCPLayerable ()

bool	visible () const

QCustomPlot *	parentPlot () const

QCPLayerable *	parentLayerable () const

QCPLayer *	layer () const

bool	antialiased () const

void	setVisible (bool on)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setAntialiased (bool enabled)

bool	realVisibility () const

Atrybuty publiczne
QCPItemPosition *const	topLeft

QCPItemPosition *const	bottomRight

QCPItemAnchor *const	top

QCPItemAnchor *const	topRight

QCPItemAnchor *const	right

QCPItemAnchor *const	bottom

QCPItemAnchor *const	bottomLeft

QCPItemAnchor *const	left

Typy chronione
enum	AnchorIndex { aiTop, aiTopRight, aiRight, aiBottom, aiBottomLeft, aiLeft }

Metody chronione
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual QPointF	anchorPixelPosition (int anchorId) const Q_DECL_OVERRIDE

void	updateScaledPixmap (QRect finalRect=QRect(), bool flipHorz=false, bool flipVert=false)

QRect	getFinalRect (bool flippedHorz=0, bool flippedVert=0) const

QPen	mainPen () const

Metody chronione dziedziczone z QCPAbstractItem
virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

double	rectDistance (const QRectF &rect, const QPointF &pos, bool filledRect) const

QCPItemPosition *	createPosition (const QString &name)

QCPItemAnchor *	createAnchor (const QString &name, int anchorId)

Metody chronione dziedziczone z QCPLayerable
virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	wheelEvent (QWheelEvent *event)

void	initializeParentPlot (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

Atrybuty chronione
QPixmap	mPixmap

QPixmap	mScaledPixmap

bool	mScaled

bool	mScaledPixmapInvalidated

Qt::AspectRatioMode	mAspectRatioMode

Qt::TransformationMode	mTransformationMode

QPen	mPen

QPen	mSelectedPen

Atrybuty chronione dziedziczone z QCPAbstractItem
bool	mClipToAxisRect

QPointer< QCPAxisRect >	mClipAxisRect

QList< QCPItemPosition * >	mPositions

QList< QCPItemAnchor * >	mAnchors

bool	mSelectable

bool	mSelected

Atrybuty chronione dziedziczone z QCPLayerable
bool	mVisible

QCustomPlot *	mParentPlot

QPointer< QCPLayerable >	mParentLayerable

QCPLayer *	mLayer

bool	mAntialiased

Dodatkowe Dziedziczone Składowe
Sygnały dziedziczone z QCPAbstractItem
void	selectionChanged (bool selected)

void	selectableChanged (bool selectable)

Sygnały dziedziczone z QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Opis szczegółowy

Pixmap example. Blue dotted circles are anchors, solid blue discs are positions.

It has two positions, topLeft and bottomRight, which define the rectangle the pixmap will be drawn in. Depending on the scale setting (setScaled), the pixmap will be either scaled to fit the rectangle or be drawn aligned to the topLeft position.

If scaling is enabled and topLeft is further to the bottom/right than bottomRight (as shown on the right side of the example image), the pixmap will be flipped in the respective orientations.

Dokumentacja składowych wyliczanych

enum QCPItemPixmap::AnchorIndex

protected

Wartości wyliczeń
aiTop
aiTopRight
aiRight
aiBottom
aiBottomLeft
aiLeft

Dokumentacja konstruktora i destruktora

QCPItemPixmap::QCPItemPixmap ( QCustomPlot * parentPlot )

explicit

Creates a rectangle item and sets default values.

The created item is automatically registered with parentPlot. This QCustomPlot instance takes ownership of the item, so do not delete it manually but use QCustomPlot::removeItem() instead.

QCPItemPixmap::~QCPItemPixmap ( )

virtual

Dokumentacja funkcji składowych

QPointF QCPItemPixmap::anchorPixelPosition ( int anchorId ) const

protectedvirtual

Reimplementowana z QCPAbstractItem.

Qt::AspectRatioMode QCPItemPixmap::aspectRatioMode ( ) const

inline

void QCPItemPixmap::draw ( QCPPainter * painter )

protectedvirtual

Implementuje QCPAbstractItem.

QRect QCPItemPixmap::getFinalRect	(	bool *	flippedHorz = `0`,
		bool *	flippedVert = `0`
	)		const

protected

QPen QCPItemPixmap::mainPen ( ) const

protected

QPen QCPItemPixmap::pen ( ) const

inline

QPixmap QCPItemPixmap::pixmap ( ) const

inline

bool QCPItemPixmap::scaled ( ) const

inline

QPen QCPItemPixmap::selectedPen ( ) const

inline

double QCPItemPixmap::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

This function is used to decide whether a click hits a layerable object or not.

pos is a point in pixel coordinates on the QCustomPlot surface. This function returns the shortest pixel distance of this point to the object. If the object is either invisible or the distance couldn't be determined, -1.0 is returned. Further, if onlySelectable is true and the object is not selectable, -1.0 is returned, too.

If the object is represented not by single lines but by an area like a QCPItemText or the bars of a QCPBars plottable, a click inside the area should also be considered a hit. In these cases this function thus returns a constant value greater zero but still below the parent plot's selection tolerance. (typically the selectionTolerance multiplied by 0.99).

Providing a constant value for area objects allows selecting line objects even when they are obscured by such area objects, by clicking close to the lines (i.e. closer than 0.99*selectionTolerance).

The actual setting of the selection state is not done by this function. This is handled by the parent QCustomPlot when the mouseReleaseEvent occurs, and the finally selected object is notified via the selectEvent/deselectEvent methods.

details is an optional output parameter. Every layerable subclass may place any information in details. This information will be passed to selectEvent when the parent QCustomPlot decides on the basis of this selectTest call, that the object was successfully selected. The subsequent call to selectEvent will carry the details. This is useful for multi-part objects (like QCPAxis). This way, a possibly complex calculation to decide which part was clicked is only done once in selectTest. The result (i.e. the actually clicked part) can then be placed in details. So in the subsequent selectEvent, the decision which part was selected doesn't have to be done a second time for a single selection operation.

You may pass 0 as details to indicate that you are not interested in those selection details.

Zobacz również: selectEvent, deselectEvent, mousePressEvent, wheelEvent, QCustomPlot::setInteractions

Implementuje QCPAbstractItem.

void QCPItemPixmap::setPen ( const QPen & pen )

Sets the pen that will be used to draw a border around the pixmap.

Zobacz również: setSelectedPen, setBrush

void QCPItemPixmap::setPixmap ( const QPixmap & pixmap )

Sets the pixmap that will be displayed.

void QCPItemPixmap::setScaled	(	bool	scaled,
		Qt::AspectRatioMode	aspectRatioMode = `Qt::KeepAspectRatio`,
		Qt::TransformationMode	transformationMode = `Qt::SmoothTransformation`
	)

Sets whether the pixmap will be scaled to fit the rectangle defined by the topLeft and bottomRight positions.

void QCPItemPixmap::setSelectedPen ( const QPen & pen )

Sets the pen that will be used to draw a border around the pixmap when selected

Zobacz również: setPen, setSelected

Qt::TransformationMode QCPItemPixmap::transformationMode ( ) const

inline

void QCPItemPixmap::updateScaledPixmap	(	QRect	finalRect = `QRect()`,
		bool	flipHorz = `false`,
		bool	flipVert = `false`
	)

protected

Dokumentacja atrybutów składowych

QCPItemAnchor* const QCPItemPixmap::bottom

QCPItemAnchor* const QCPItemPixmap::bottomLeft

QCPItemPosition* const QCPItemPixmap::bottomRight

QCPItemAnchor* const QCPItemPixmap::left

Qt::AspectRatioMode QCPItemPixmap::mAspectRatioMode

protected

QPen QCPItemPixmap::mPen

protected

QPixmap QCPItemPixmap::mPixmap

protected

bool QCPItemPixmap::mScaled

protected

QPixmap QCPItemPixmap::mScaledPixmap

protected

bool QCPItemPixmap::mScaledPixmapInvalidated

protected

QPen QCPItemPixmap::mSelectedPen

protected

Qt::TransformationMode QCPItemPixmap::mTransformationMode

protected

QCPItemAnchor* const QCPItemPixmap::right

QCPItemAnchor* const QCPItemPixmap::top

QCPItemPosition* const QCPItemPixmap::topLeft

QCPItemAnchor* const QCPItemPixmap::topRight
